Bag End PD10E-I
High Output Self-powered Dual Speaker Sub

OUR PART #:  PD10E-I

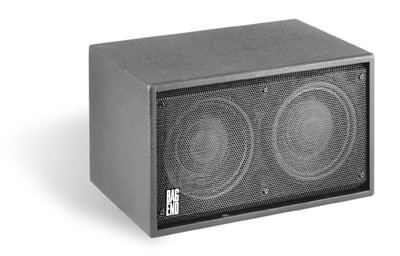

The P-D10E-I is a high output self-powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure.
Learn More
Our Price: $2,108.00
List Price: $2,480.00
You save 15%!
Write the first review.
Bag End PD10E-I
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The P-D10E-I is a high output self-powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The P-D10E-I provides perfectly flat response down to 8 Hertz when used in conjunction with the 8 Hertz Integrator. Designed for permanent installation, the P-D10E-I offers a flat black painted textured and a black coated steel grille.

Specifications:

  • Enclosure: 18 mm 13-ply birch plywood
  • Low Frequency Transducers: 2 - 10" INFRA cone, 2.5" Voice coil, 6O oz. Magnet
  • Internal Amplification: 1 - Minima One
  • Grille: 16 Gauge black vinyl coated perforated steel
  • System Type: INFRA Sealed chamber (1.4 cu. ft.)
  • Input: 10K Ohms Balanced XLR input with loop through
  • Input CAL Sensitivity: +4 dBu
  • System Power: 1000 W. continuous
  • Crossover Network: Requires external INFRA Integrator for 8 Hz Response
  • Frequency Response: 60 Hz to250 Hz +/-3 dB  (with external INFRA Integrator\ 8 Hz to 95 Hz +/-3 dB)
  • Hi Pass Filter Frequency Switchable: -6dB @ 8 Hz, @ 50 Hz, @ 95 Hz
  • Crossover Network: Requires external INFRA Integrator for 8 Hz Response
  • Maximum Acoustic Output:
    Half Space @ 1 Meter 10 Hz - 97 dBSPL
    20 Hz - 109 dBSPL
    40 Hz - 121 dBSPL
    80 Hz - 130 dBSPL
  • LED Indicators:
    Green, On
    Yellow, System Limit
    Red, System Fault or Sleep Mode
  • AC Power Requirements: 88 Volts Minimum, 270 Volts Maximum
  • Finish: BlackTextured Finish Paint
  • Dimensions: 13"h x 22"w x 13"d; 33 cm x 56 cm x 33 cm
  • Weight: 53 lbs.; 23 kg
  • Shipping Dimensions: 27" x 16" x 16"; 69 cm x 41 cm x 41 cm
  • Shipping Weight: 59 lbs.; 27 kg
