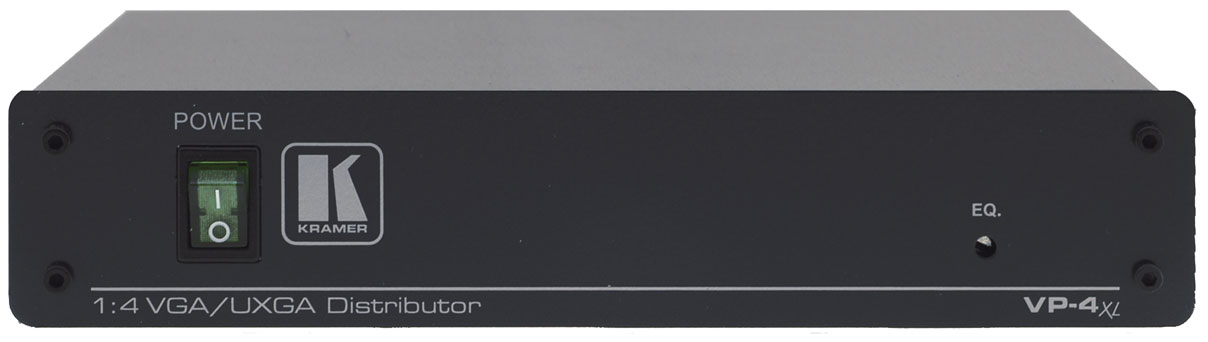

Kramer VP-4XL
1:4 Computer Graphics Video Distribution Amplifier

OUR PART #:  VP4XL

The VP-4xl is a high-performance distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher.
Learn More
Our Price: $344.00
List Price: $430.00
You save 20%!
Write the first review.
Kramer VP-4XL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The VP-4xl is a high-performance distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. The unit takes one input, provides correct buffering and isolation, and distributes the signal to four identical outputs.

Features:

  • High Bandwidth  - 375MHz (-3dB).
  • HDTV Compatible.
  • EQ (Peaking) Control.
  • ID Bit Control.
  • Desktop Size  - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter.

Specifications:

  • Input: 1 VGA/UXGA input on a 15-pin HD (F) connector.
  • Output: 4 VGA/UXGA on 15-pin HD (F) connectors.
  • Bandwidth (-3DB): 375MHz.
  • Max. Output Level: 1.9Vpp.
  • Diff. Gain: 0.12%.
  • Diff. Phase: 0.28Deg.
  • K-Factor: <0.05%.
  • S/N Ratio: 73.7dB.
  • Controls: EQ: 0 to 6.6dB @50MHz.
  • Coupling: DC.
  • Power Consumption: 100-240V AC, 50/60Hz, 4.3VA.
  • Dimensions: 8.7" x 7" x 1.7" (22cm x 18cm x 4.5cm) W, D, H, (half 19", 1U).
  • Weight: 2.64 lbs (1.2 kg).
  • Accessories: Power cable.
  • Options: RK-1 19" rack adapter.
