Bogen WV250 Wall-Mount Power Vector Modular Amplifier 250W

OUR PART #: WV250 MFR #: WV250

Copied to clipboard

Bogen's Wall-Mount Power Vector modular amplifiers offer a wide range of power from which to choose from, with three models ranging from 100W to 250W. ...Read more

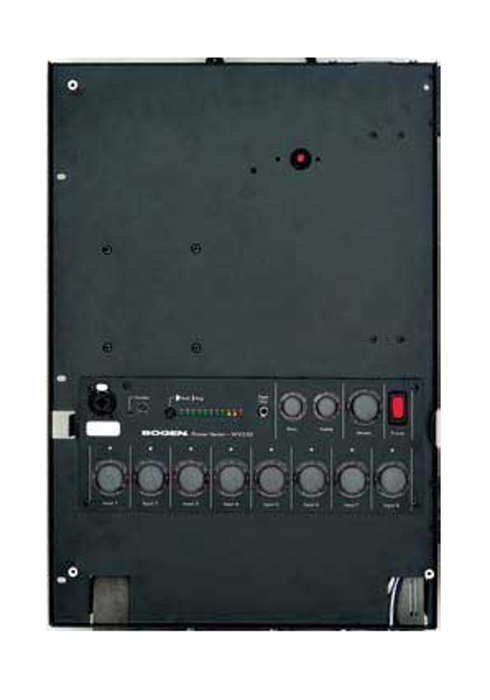

Bogen WV250 Wall-Mount Power Vector Modular Amplifier 250W Image 1
Bogen WV250 Wall-Mount Power Vector Modular Amplifier 250W
Our Price: $1,465.40
List Price: $2,876.57
You save 49%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$41/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Bogen's Wall-Mount Power Vector modular amplifiers offer a wide range of power from which to choose from, with three models ranging from 100W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems.

Each model includes eight module bays for plug-in input modules and allows for up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status. An 11-segment LED output meter monitors output signal level.

Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately).

Bogen Communications WV250 Features:

  • 100-, 150-, and 250-watt models, each with a large power reserve
  • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
  • 8 module bays
  • Wide selection of advanced plug-in modules
  • 2 module bays capable of handling signal processing plug-in output modules
  • 4 levels of priority between modules
  • 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
  • Adjustable output level limiter with limit indicator
  • Tape output available on front of unit
  • Optional front-mounted input combo jack with 1/4" stereo phone and female XLR capabilities
  • Motorized master volume control can be remotely operated
  • Bass and treble controls with center detent
  • Two-color LED for each channel indicates input active/clipping
  • Switch permits user to select either transformer-coupled or a direct low-impedance output
  • Bass and treble control bypass switch (located in module bay 6)
  • 125 Hz Lo-cut feature (switch located in module bay 6)
  • 5-position barrier strip, with clamping washers, provides connections for speaker loads
  • Master mute function overrides all audio from the mixer section of the amplifier
  • Screw terminal for master mute and remote volume control functions
  • Each of the 8 module bays has an associated independent volume control
  • Remote volume control panel (RVCP) (sold separately)
  • Requires flush-mount (Model BBF) or surface-mount(Model BBS) back boxes (sold separately)
  • Requires front cover door (WMAD sold separately)
  • UL and CSA listed

Bogen Communications WV250 Specifications:

  • Power Output (RMS): 250W (340W typical, @ 1kHz/0.1%/4 ohms)
  • Frequency Response:
    • Transformer: 45Hz-20kHz; 0/-2dB @ FRP
    • Direct: 20Hz-20kHz; 0/-1dB @ FRP
  • Distortion:
    • Transformer: 0.5% THD+N, Maximum, Full-rated bandwidth @ FRP
    • Direct: 0.1% THD+N, Maximum, Full-rated bandwidth @ FRP
  • Signal-to-Noise:
    • Fundamental: -94dB
    • With Aux Module: -70dB
    • With Mic Module: -60dB
    • With Tel Module: -70dB
  • Tone Controls:
    • Bass Frequency: 100Hz (+/-10dB minimum)
    • Treble Frequency: 10kHz (+/-10dB minimum)
    • Low Cut Frequency: 125Hz @ -6dB/octave
  • Sensitivity: 0.4V (at backplane connector)
  • Output Regulation: 2dB or better no load to full load
  • Output Impedance:
    • Transformer-Coupled: 70V, 25V, 8 ohms; balanced or unbalanced
    • Direct Coupled: 4 ohms unbalanced
  • Tape Out:
    • Output Level: 4VRMS @ FRP
    • Output Impedance: 50 ohms maximum
  • Overload Protection: Electronic overload protection (auto reset)
  • Thermal Protection: Thermistor attached to heat sink
  • Line Fusing: Resettable circuit breaker
  • Cooling: Thermally controlled 3-speed fan
  • Power Consumption: 5.5A @ 120V AC, 60 Hz
  • Dimensions: (W x H): 14 1/8" x 21"
  • Weight: 28 lbs
