ETC/Elec Theatre Controls 450J-1
50° Source Four jr Ellipsoidal in White

OUR PART #:  S4JR-50-WHITE

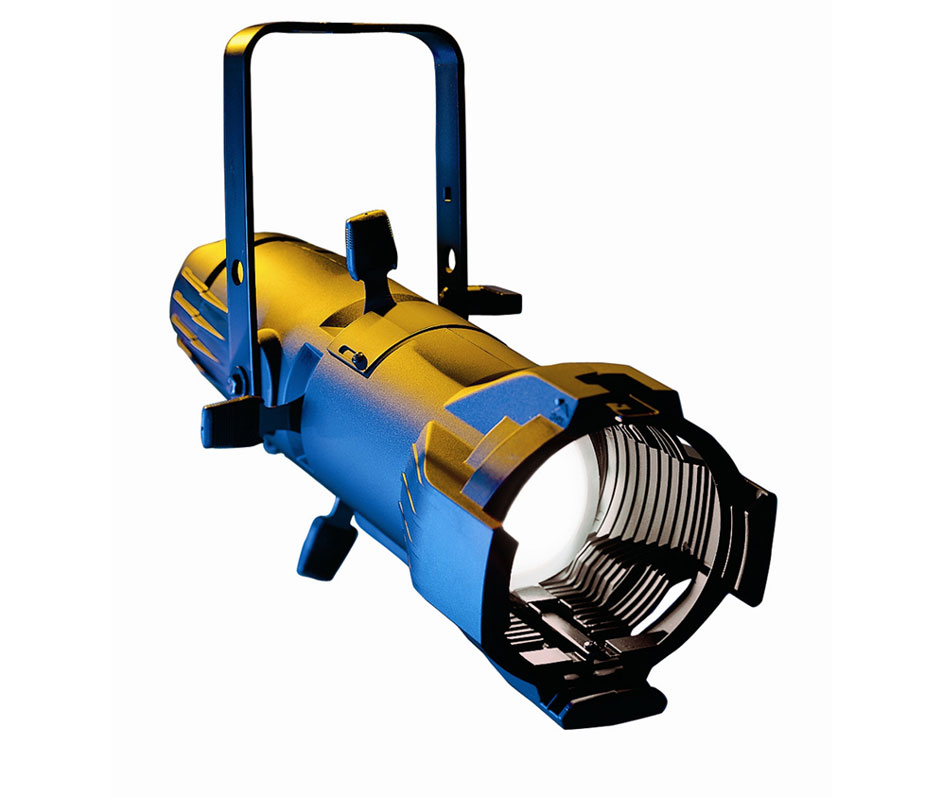

NOTE: Product shown in image is for illustrative purposes only. Actual product is  WHITE in appearance. The power of Source Four® in a compact and economical size.
Learn More
Our Price: $385.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls 450J-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: Product shown in image is for illustrative purposes only. Actual product is WHITE in appearance.

The power of Source Four® in a compact and economical size! The smaller-scale Source Four jr™ uses the same technology that made the standard Source Four famous. That means unsurpassed imaging and beam quality. Compared to many conventional 650W and 1000W ellipsoidal spotlights, Source Four jr’s 575 watts still deliver an even brighter light and offer the flexibility of multiple HPL lamp options and interchangeable lenses. The Source Four jr is perfect for -- but never limited to -- smaller theater venues, churches, schools, industrials, and any other application where affordability, space-savings and great performance are the criteria.

ETC S4JR-50-WHITE Features:

  • 26º, 36º, and 50º fixed-field angles
  • Rated up to 575W
  • Super-efficient HPL lamp
  • Interchangeable lens assemblies
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Two-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Rugged die-cast aluminum construction
  • Accepts M-size gobos and drop-in iris
  • Supports ETC Dimmer Doubling™ (North America only)

ETC S4JR-50-WHITE Specifications:

Physical

  • Rugged die cast aluminum construction
  • 20 gauge stainless steel shutters in a bi-plane assembly
  • Interchangeable lens tubes with smooth–running teflon guides provide three user-fit field angle options
  • High impact, thermally insulated knobs and shutter handles
  • Two accessory slots, and a top mounted, gel frame retainer
  • Steel yoke with two mounting positions
  • Positive locking, hand-operated yoke clutch
  • Slot for stainless steel patterns
  • Slot with sliding cover for motorized pattern devices or optional iris
  • UL and cUL Listed

Electrical

  • 115-240V, 50/60Hz
  • High temperature 3–conductor 36” leads in a glass fiber outer sleeve
  • Supports ETC Dimmer Doubling™ technology

Lamp

  • HPL — compact tungsten filament contained in a krypton filled quartz envelope (see table for suitable lamp types)
  • 575W Maximum
  • Integral die cast aluminum heat sink lamp base

Optical

  • Optimized optical system for efficient photometric performance
  • Projector-quality, high contrast aspheric lens
  • Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
  • Reflector secured with anti-vibration shock mounts
  • Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
  • Beam edge continually adjustable hard-to-soft
  • Interchangeable lens assembly kits permit selection of 26°, 36°, and 50° field angles, and 25°-50° zoom range

NOTE: ETC Source Four jrs are supplied with C-clamp, color frame and 3’ (96cm) leads as standard. Lamp NOT Included. Connector NOT Included.
