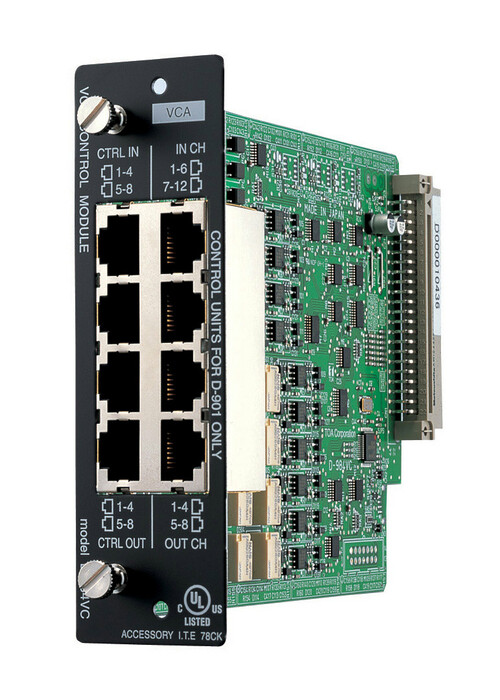

TOA D984VC
Remote VCA Control Module for TOA D-901 Digital Mixer

OUR PART #  D984VC

Our Price: $405.32
List Price: $501.58
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

VCA control (20 channels) + 8 inputs 8 outputs. By the VCA controls from external equipment, this module permits the D-901's gains of 12 inputs and 8 outputs to be controlled. By the contact input controls from external equipment, it permits preset memory recall, gain control, stereo input selection and channel ON/OFF operation plus tally outputs.

Controls:

  • VCA Control Input: +5V GND, Terminal 1 – 20 (12 input channels, 8 outputchannels), RJ45 connecter x 4 Control contents: Volume control of each input/output channel.Variable range: –8dB to +0dB
  • Contact Input: COM + terminal 1-8: Open voltage: 5V DC, short-circuit current: 5mA, RJ45 connector x 2
  • Control Preset Memory Selection: Any preset memory can be recalled.Control method: No-voltage make of over 100ms/ No-voltage make single pulse of over 100ms
  • Volume Control: Any input/output channel volume can be turned UP or DOWN.Control method: 1 step variation for no-voltage make single pulse of over 100ms 1 step continuous operation for every 70ms for no-voltage make of over 100ms. Can be reset when at break.Variable range; –8dB to +10dB
  • Channel: Any input/output channel can be turned ON and OFF.Control method: No-voltage make of over 100ms/No-voltage make single pulse of over 100ms
  • Stereo Selection: Input channel lines of the D-936R (optional), or the D-937SP(optional) (4stereo input module) can be selected.Control method: No-voltage make of over 100ms/No-voltage make single pulse of over 100ms
  • Contact Output: COM + terminal 1-8: No-voltage make contact, contact capacity: 24V DC, 100mA RJ45 connector x 2

Specifications:

  • Finish, Panel: Pre-coated steel plate, black, 30% gloss
  • Dimensions (W x H x D) 35 x 119.5 x 178.4 mm
  • Weight: 170g

TOA D984VC
Remote VCA Control Module for TOA D-901 Digital Mixer

OUR PART #  D984VC

Product Information:

VCA control (20 channels) + 8 inputs 8 outputs. By the VCA controls from external equipment, this module permits the D-901's gains of 12 inputs and 8 outputs to be controlled. By the contact input controls from external equipment, it permits preset memory recall, gain control, stereo input selection and channel ON/OFF operation plus tally outputs.

Controls:

  • VCA Control Input: +5V GND, Terminal 1 – 20 (12 input channels, 8 outputchannels), RJ45 connecter x 4 Control contents: Volume control of each input/output channel.Variable range: –8dB to +0dB
  • Contact Input: COM + terminal 1-8: Open voltage: 5V DC, short-circuit current: 5mA, RJ45 connector x 2
  • Control Preset Memory Selection: Any preset memory can be recalled.Control method: No-voltage make of over 100ms/ No-voltage make single pulse of over 100ms
  • Volume Control: Any input/output channel volume can be turned UP or DOWN.Control method: 1 step variation for no-voltage make single pulse of over 100ms 1 step continuous operation for every 70ms for no-voltage make of over 100ms. Can be reset when at break.Variable range; –8dB to +10dB
  • Channel: Any input/output channel can be turned ON and OFF.Control method: No-voltage make of over 100ms/No-voltage make single pulse of over 100ms
  • Stereo Selection: Input channel lines of the D-936R (optional), or the D-937SP(optional) (4stereo input module) can be selected.Control method: No-voltage make of over 100ms/No-voltage make single pulse of over 100ms
  • Contact Output: COM + terminal 1-8: No-voltage make contact, contact capacity: 24V DC, 100mA RJ45 connector x 2

Specifications:

  • Finish, Panel: Pre-coated steel plate, black, 30% gloss
  • Dimensions (W x H x D) 35 x 119.5 x 178.4 mm
  • Weight: 170g
