Kramer C-GM/GM (75 Feet)
Molded Male VGA to Male VGA Cable, 75 Feet

OUR PART #:  C-GM/GM-75

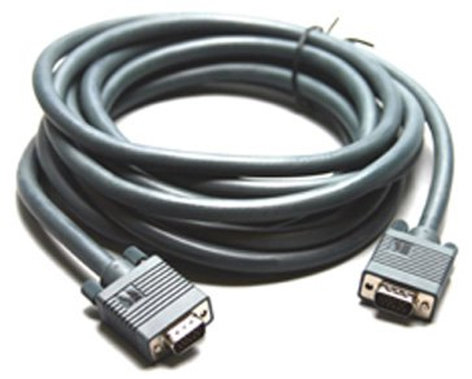

Kramer’s GM/GM and GM/GF computer graphics video cables are high performance cables with molded 15-pin HD connectors on both ends.
Learn More
Our Price: $68.00
List Price: $85.00
You save 20%!
Write the first review.
Kramer C-GM/GM (75 Feet)
Qty:
In Stock

Related Products

Kramer’s GM/GM and GM/GF computer graphics video cables are high performance cables with molded 15-pin HD connectors on both ends. They are used for connecting computer graphics video signals between computers or video scalers and plasma, LCD or other popular display technologies.

Kramer C-GM/GM Features:

  • Quality Construction - High resolution 26 gauge minicoax for video.
  • Easy Installation - Pre-terminated with molded 15-pinHD connectors, gold plated pins and thumbscrews for easy connection.
  • Cable Specs - See Kramer BC-3X2T7S for detailed cable specs.

Kramer C-GM/GM Specifications:

  • Coax Specifications:
    • Conductor: 26 AWG 7/34 tinned copper.
    • Dielectric: Foam polyethylene with red, green, blue color coding.
    • Inner Jacket: PVC.
    • Jacket Colors: Black.
    • Shield:
      • (A) 90% spiral 38 AWG tinned copper
      • (B) aluminum-foil/mylar 25% overlap rate
  • Diameter:
    • Center Conductor: 0.019" (0.48mm)
    • Dielectric: 0.076" (1.95mm)
    • Individual Coax: 0.102" (2.6mm)
  • Electrical Specifications:
    • Attenuation (dB/100 ft.):
      • -0.5 dB @1MHz.
      • -1.3 dB @ 5 MHz.
      • -1.9 dB @ 10MHz.
      • -4.0 dB @ 50MHz.
      • -5.7 dB @100MHz.
      • -8.0 dB @ 180MHz.
      • -14.0 dB @ 400MHz.
    • Capacitance: 17.3pF per foot, 57pF per meter.
    • DC resistance: 45 ohms per 1000ft, 148 ohms per km.
    • Impedance: 75 ohms
    • Temperature: 68° to 167°F (- 20° to 75°C)
  • Regulatory Specifications:
    • CSA: C(UL) CL2.
    • UL: CL2.
