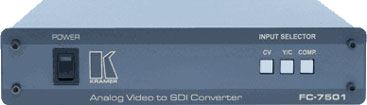

Kramer FC7501
Multi-Standard Component to SDI Converter

OUR PART #:  FC7501

The Kramer FC-7501 is a high quality, multi-standard converter that converts analog video (composite video, s-Video and component video) to serial digital video (SDI).
Learn More
Our Price: $632.00
List Price: $790.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer FC7501
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer FC-7501 is a high quality, multi-standard converter that converts analog video (composite video, s-Video and component video) to serial digital video (SDI). Many professional video units on the market today, such as Betacam decks and DVD players have high quality analog outputs, and the FC-7501 is ideal for preserving the quality, and minimizing the artifacts, when converting to the digital domain. Input looping connectors are provided, and there is a 75?/Hi-Z switch for input termination. The converted SDI is available on 2 buffered and reclocked SDI outputs.

The FC-7501 has an RS-232 port and comes with a user-friendly Windows®-based program, which can be used to modify video parameters such as contrast, saturation and hue. These parameters are stored in non-volatile memory. The input standard (50/60Hz) is automatically detected, generating the appropriate output. True 10-bit digitizing is used, making the unit ideal for broadcast applications. The FC-7501 is rugged, dependable, and can be mounted in a 19” professional rack using the optional RK-80 rack adapter.

Specifications:

  • Inputs: 1 composite video/Y: 1Vpp/75?; looping on BNC connectors with a termination switch. 1 (B-Y): 0.7Vpp/75?; looping on BNC connectors with a termination switch. 1 (R-Y)/C: 0.7Vpp/0.3Vpp/75?; looping on BNC connectors with a termination switch
  • Outputs: 2 SDI on BNC connectors
  • Video Standards: CV, YC: NTSC (M, Japan, 4.43), PAL (B, D, G, H, I, M, N, Nc) and SECAM (B, D, G, K, K1, L)
  • Bandwidth (-3dB): 6MHz
  • Luminance Non-Linerarity: 1% (worst case)
  • K-Factor: 0.1%
  • S/N Ratio: 57dB (worst case)
  • Chroma/Luma Delay: <10ns
  • SDI Pixel Jitter: <500ps (10Hz HPF) with PLL option board. <1ns (10kHz HPF) without PLL option board
  • Input Coupling: DC or AC via internal jumpers
  • Power Source: 12 VDC, 320mA
  • Dimensions (W x D x H): 8.7” x 7” x 1.7” (22cm x 18cm x 4.5cm)
  • Weight: 2.9 lbs. (1.3 kg)
  • Accessories: Power supply, Windows® - based Kramer control software
  • Options: 19” rack adapter RK-80
