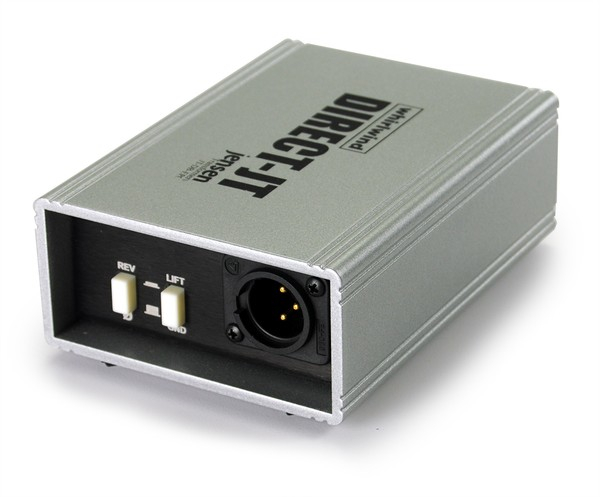

Whirlwind DIRECT-JT
Direct Box w/Jensen transformer

OUR PART #  DIRECT-JT

Our Price: $192.00
List Price: $274.36
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Our top-of-the-line passive DI features the Jensen JT-DB-EPC transformer - world renown for wide frequency response and superior noise rejection characteristics.

Extruded aluminum housing with recessed switches provides expected Whirlwind durability.

Features include:

  • 1/4" input jacks can be used as "INPUT / THRU" or they may be combined with the "COMBINE" pushbutton to safely sum stereo feeds to a single channel.

  • "FILTER / OFF" button engages a filter that emulates the frequency response of a microphone placed in front of a 12” speaker.

  • "PAD" button engages 15dB pad for reducing hot input levels.

  • "REV / Ø" button reverses the polarity from pin 2 hot to pin 3 hot for correcting non-standard equipment and mis-wired cables or for creating special effects.

  • "LIFT / GND" button to help eliminate hum and buzz.


Model # - DIRECT-JT
Impedance Ratio: 133:1

Frequency Response: 20Hz-20kHz re:1kHz, -0.08dB / -0.07dB

THD @ 20Hz: 0.036%

THD @ 1kHz: less than 0.001%

-3dB BW: 100kHz

Whirlwind DIRECT-JT
Direct Box w/Jensen transformer

OUR PART #  DIRECT-JT

Product Information:

Our top-of-the-line passive DI features the Jensen JT-DB-EPC transformer - world renown for wide frequency response and superior noise rejection characteristics.

Extruded aluminum housing with recessed switches provides expected Whirlwind durability.

Features include:

  • 1/4" input jacks can be used as "INPUT / THRU" or they may be combined with the "COMBINE" pushbutton to safely sum stereo feeds to a single channel.

  • "FILTER / OFF" button engages a filter that emulates the frequency response of a microphone placed in front of a 12” speaker.

  • "PAD" button engages 15dB pad for reducing hot input levels.

  • "REV / Ø" button reverses the polarity from pin 2 hot to pin 3 hot for correcting non-standard equipment and mis-wired cables or for creating special effects.

  • "LIFT / GND" button to help eliminate hum and buzz.


Model # - DIRECT-JT
Impedance Ratio: 133:1

Frequency Response: 20Hz-20kHz re:1kHz, -0.08dB / -0.07dB

THD @ 20Hz: 0.036%

THD @ 1kHz: less than 0.001%

-3dB BW: 100kHz
