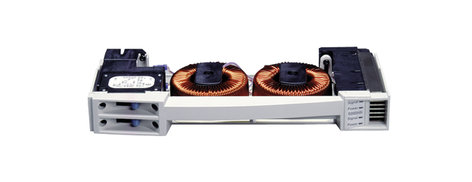

ETC/Elec Theatre Controls D20AF
Dual 20A 120V Dimmer Module

This Sensor® Advanced Features (AF) dimmer module enables dimmer-specific feedback of load circuit data while performing digital phase angle dimming in AF-capable Sensor Racks and Portable Packs.

The Advanced Features (AF) Dimmer Module is designed for use in Sensor®+ Dimming Series modular rack enclosures. Advanced Features Dimmer Modules enable dimmer-specific feedback of load circuit data while performing digital phase angle dimming in AF-capable Sensor+ dimmer enclosures. The high-density, dimmer modules feature modular installation and removal, fully magnetic circuit breakers and enhanced risetime toroidal filters.

Applications:

• Incandescent lighting
• Low voltage lighting
• Quartz lighting
• Neon lighting
• Cold Cathode lighting
• 2-wire Fluorescent ballast
• 4-wire Fluorescent ballast

Features:

• Voltage, current, and temperature sensors in each dimmer
• D15AF and D20AF modules are dual density
• D50AF modules are single density
• D100AF modules are half density
• Dual back-to-back SCRs for each circuit
• 500µS risetime toroidal filters
• High-density modular assembly
• Die-cast aluminum chassis
• Fully magnetic circuit breakers
