Atlas Sound WMA16-23
16RU Wallmount Rack, 28"x23"x22"

OUR PART #:  WMA16-23

Note: shown with optional SFD16 front door The Atlas Sound WMA (wall mount assembly) series of wall racks provide outstanding versatility...
Learn More

Related Products

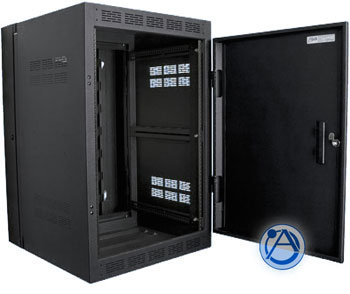

Note: shown with optional SFD16 front door

The Atlas Sound WMA (wall mount assembly) series of wall racks provide outstanding versatility, strength and functionality all in an elegantly designed package.Designed with extensive field research and contractor input, the WMA series is the perfect solution for any installation where a wall mount cabinet is required.


  • Secure and innovative design greatly simplifies process of mounting centersection to rear pan-may be safely installed by one person
  • Mirror image back pan allows left or right hinging of center sectionregardless of orientation
  • Exclusive, integral Atlas Sound "Alignment Frame" provides supportthroughout the complete travel of the center section
  • Back pan boxed separately on same pallet with center section allowscontractor to send rear section to job site for installation by other trades
  • Top and bottom cutouts for Atlas Sound ES series single or dual fan panels(Ships with 2RU blank panels installed)
  • Finished in durable black electrostatic powder coat
  • 12.5" x 12.5" cut-out on back pan allows easy cable access throughmounting surface
  • New, continuous slot "hat section" design allows full front to backadjustment of rack rails.  Securing holes top and bottom provide fixedpositioning of rails
  • Ships with one set of plated rack rails and (100) 10/32 x .75" rack screwswith captive washers
  • Rails include hash marks to indicate rack unit increments
  • New side lock security system provides a easy yet secure method of joiningcenter section to back pan
  • Extensive internal bracing also provides cable management/ pass through
  • Multiple knockouts top and bottom of rear section for conduit &wireless antennas
  • Back pan includes raised mounting embosses to mount power andotheraccessories


  • Height: 33"(85.73 cm)
  • Width: 21" (55.56 cm)
  • Depth: 23" (59.84 cm)
  • Shipping Weight: 121.00 lbs (54.88 kg)
  • Center Section Depth: 18"
  • Rack Spaces: 16
  • UL Listed/Standard: 1678

Optional Accessories

  • Rear rack rail (pr)
  • Fan panels
  • Side mount fans
Atlas Sound SFD16 Door Solid 28'x20"x1" 16RU
Atlas Sound SFD16 Door Solid 28'x20"x1" 16RU
Atlas Sounds' WMA Series solid steel front doors install quickly and with no drilling. Gripsert nuts on the SFD front doors and WMA racks allow doors to be installed after the equipment is installed.All hardware and lockset included
