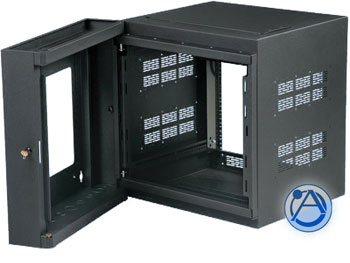

Atlas Sound WMA10-23
Wallmount Rack 17x23x22 10RU

OUR PART #:  WMA10-23

The Atlas Sound WMA (wall mount assembly) series of wall racks provide outstanding versatility...
Learn More

Call for info!

Similar Products

The Atlas Sound WMA (wall mount assembly) series of wall racks provide outstanding versatility, strength and functionality all in an elegantly designed package.Designed with extensive field research and contractor input, the WMA series is the perfect solution for any installation where a wall mount cabinet is required.

Features

  • Secure and innovative design greatly simplifies process of mounting center section to rear pan-may be safely installed by one person
  • Mirror image back pan allows left or right hinging of center section regardless of orientation
  • Exclusive, integral Atlas Sound "Alignment Frame" provides support throughout the complete travel of the center section
  • Back pan boxed separately on same pallet with center section allows contractor to send rear section to job site for installation by other trades
  • Top and bottom cutouts for Atlas Sound ES seriessingle or dual fan panels (Ships with 2RU blank panels installed)
  • Finished in durable black electrostatic powder coat
  • 12.5" x 12.5" cut-out on back pan allows easy cable access through mounting surface
  • New, continuous slot "hat section" design allows full front to back adjustment of rack rails.  Securing holes top and bottom provide fixed positioning of rails
  • Ships with one set of plated rack rails and (100) 10/32 x .75" rack screws with captive washers
  • Rails include hash marks to indicate rack unit increments
  • New side lock security system provides a easy yet secure method of joining center section to back pan
  • Extensive internal bracing also provides cable management/ pass through
  • Multiple knockouts top and bottom of rear section for conduit & wireless antennas
  • Back pan includes raised mounting embosses to mount power and other accessories

Specifications

  • Height: 23"(58.74 cm)
  • Width: 21" (55.56 cm)
  • Depth: 23" (59.84 cm)
  • Shipping Weight: 106.00 lbs (48.08 kg)
  • Center Section Depth: 18"
  • Rack Spaces: 10
  • UL Listed/Standard: 1678

Optional Accessories

  • Rear rack rail (pr)
  • Fan panels
  • Side mount fans
Door Solid 18"x20"x1" 10RU
Atlas Sound SFD10 Door Solid 18"x20"x1" 10RU
Atlas Sounds' WMA Series solid steel front doors install quickly and with no drilling. Gripsert nuts on the SFD front doors and WMA racks allow doors to be installed after the equipment is installed.All hardware and lockset included
121.99 152.99 20

Usually ships in 7-14 business days.
