DBX ZC-7
Push-to-Talk Page Assignment Controller for ZonePRO Products

OUR PART #:  ZC-7

The dbx ZC-7, part of dbx's ZC series of wall-mounted zone controllers...
Learn More
Our Price: $59.00
List Price: $74.00
You save 20%!
Write the first review.
DBX ZC-7
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

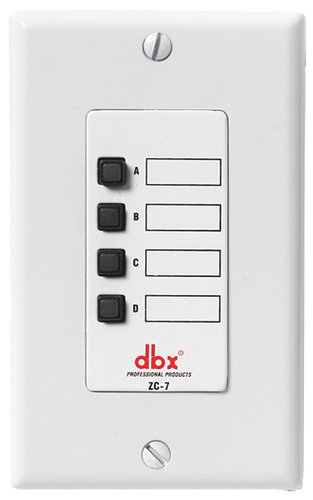

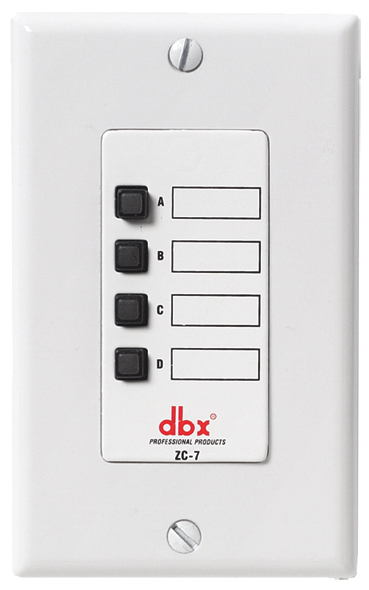

The dbx ZC-7, part of dbx's ZC series of wall-mounted zone controllers, is a remote device that provides programmable push-to-talk page assignment for the dbx ZonePRO™ line of devices. It has DIP switches that allow identification with connection to the processing device via CAT 5 cable on RJ-45 connectors.

dbx ZC-7 Specifications:

  • Connectors: (2) RJ-45
  • Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example:
    • (3) Zone Controllers: 600ft
    • (6) Zone Controllers: 300ft
  • Parallel Wiring using ZC-BOB: Up to (6) Zone Controllers: 1000ft
  • Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft) nominal DCR and rated VW-1 or higher
  • Safety Agency Certifications: UL 60065, IEC 60065, EN 55013, E60065
