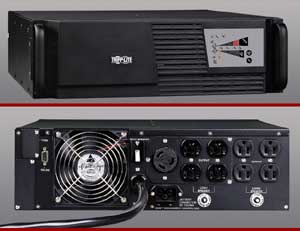

Tripp Lite SU3000RTXL3U
Online, Double-Conversion UPS Power System

OUR PART #  SU3000RTXL3U

Our Price: $1,490.65
List Price: $2,172.60
You save 31%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Tripp Lite's SmartOnLine SU3000RTXL3U on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges. Multi-use form factor occupies only 3 rack spaces (3U) in standard 19" rackmount configuration and includes tower stands to support upright placement. Large capacity 3KVA/2400 watt UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS types. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 9 outlets arranged in two individually switchable load banks. These outlet banks can be independently controlled via software interface to selectively reboot remote equipment, or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely through the addition of external 2U rackmount battery packs (part# BP72V12-2U). Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Compatible with Tripp Lite's Watchdog system service software.

Features
 • True on-line, double conversion UPS provides pure, sine wave AC output at all times
 • Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
 • Removes harmonic distortion, electrical impulses, frequency variations and other hard to solve power problems
 • Accepts input voltages between 80 and 138 (65 to 138 at loads under 70%), regulating output to 120V +/-2%
 • 3000VA/2400 watt power capacity with 9 total outlets (4 NEMA5-15R, 4 NEMA5-20R & 1 NEMAL5-30R)
 • Standard internal battery set provides 17 minutes runtime at half load
 • Expandable runtime with multiple external battery packs (part# BP72V12-2U)
 • Innovative design makes unit adaptable for rackmount, tower, or stacking applications
 • Uses only 3 rack spaces (3U) in standard 19" rack
 • DB9 serial port for network interface; SNMP compatible
 • Slot for optional SNMP/web card (part# SNMPWEBCARD)
 • PowerAlert unattended shutdown software and 6 ft. network cable included
 • Compatible with Tripp Lite's Watchdog system service software
 • Fault tolerant auto-bypass maintains continuous utility output to connected equipment, even in cases where the UPS is overloaded or suffers an internal failure that requires service
 • Diagnostic LEDs
 • Battery replacement door
 • Mounting hardware included for 4 post rack enclosures, optional 2POSTRMKIT accessory enables installation in 2 post telecom racks
 • $250,000 Ultimate Lifetime connected equipment insurance
 • 2 year manufacturers product warranty

Specifications
• Output:
 - Output volt amp capacity (VA): 3000
 - Output watt capacity (watts): 2400
 - Output nominal voltage: 120V AC
 - Output voltage regulation: Maintains full-time sine wave output within 2% of 120V, less than 5% total harmonic distortion
 - Output frequency regulation: Regulates line frequency to 50/60Hz +/-0.05Hz
 - Outlet quantity/type: 9 outlets (4 NEMA5-15R, 4 NEMA5-20R, 1 NEMA L5-30)
 - Customized load management receptacles: 2 individually controllable load banks support automated load shedding and remote reboot on demand of locked network devices. Configurable via PowerAlert software to automatically switch off optional loads, like monitors, to increase available runtime for servers and other critical devices. (Bank A consists of 4 outlets/Bank B consists of 4 outlets)
 - Overload protection: Via 40A input breaker
• Input:
 - Maximum input amps: 22A/2844 watts max
 - Input connection type: NEMA L5-30P
 - Input cord length: 10ft. 10 gauge
 - Recommended electrical service: 30A 120V
• Battery:
 - Full load runtime: Internal batteries - 6 min.; 1 BP72V122U (3000VA) - 17 min.
 - Half load runtime: Internal batteries - 17 min.; 1 BP72V122U (1500VA) - 37 min.
 - Expandable battery runtime: Supports extended runtime with optional external battery pack BP72V122U (multi-pack compatible)
 - DC system voltage: 72 V DC
 - Typical battery lifespan: 3-6 years, depending on useage
 - Battery recharge rate: 2-4 hours to 90%
• Voltage Regulation:
 - Voltage regulation description: On-line, double-conversion power conditioning maintains output within 2% of 120 volts at all times
 - Overvoltage correction: Maintains output of 120V +/-2% during overvoltages to 138V AC
 - Brownout correction: Maintains output of 120V +/-2% during undervoltages to 80V AC
 - Sever brownout correction: At load levels less then 70%, UPS maintains output of 120V +/-2% during undervoltages to 65V AC
• LEDs, Alarms & Swithces:
 - Front panel LEDs: 6 LED STATUS DISPLAY: line power (green), online (green), bypass (yellow), on battery (green), overload (red), battery low (yellow); 4 LED LOAD/BATTERY LEVEL DISPLAY (100%, 75%, 50%, 25%)
 - Alarms: Multi-function audible alarm offers notification of UPS start, backup operation, low battery warning, overload, UPS fault and remote shutdown
 - Switches: Includes main power off/on switch, plus 1 switch to select battery charge/load level display
• Surge/Noise Suppression:
 - AC surge suppression: 2440 joules
 - AC suppression response time: Instantaneous
 - EMI/RFI AC noise suppression: Yes
• Physical:
 - Weight: 74.9 lbs (net); 90.3 lbs (shipping)
 - Dimensions (H x W x D): 5.25" x 17.5" x 19.8"
 - Cooling Method: Built-in cooling fan
 - Battery Access: User replaceable, how swap battery replacement supported via front access panel

Tripp Lite SU3000RTXL3U
Online, Double-Conversion UPS Power System

OUR PART #  SU3000RTXL3U

Product Information:

Tripp Lite's SmartOnLine SU3000RTXL3U on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges. Multi-use form factor occupies only 3 rack spaces (3U) in standard 19" rackmount configuration and includes tower stands to support upright placement. Large capacity 3KVA/2400 watt UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS types. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Includes 9 outlets arranged in two individually switchable load banks. These outlet banks can be independently controlled via software interface to selectively reboot remote equipment, or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely through the addition of external 2U rackmount battery packs (part# BP72V12-2U). Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Compatible with Tripp Lite's Watchdog system service software.

Features
 • True on-line, double conversion UPS provides pure, sine wave AC output at all times
 • Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
 • Removes harmonic distortion, electrical impulses, frequency variations and other hard to solve power problems
 • Accepts input voltages between 80 and 138 (65 to 138 at loads under 70%), regulating output to 120V +/-2%
 • 3000VA/2400 watt power capacity with 9 total outlets (4 NEMA5-15R, 4 NEMA5-20R & 1 NEMAL5-30R)
 • Standard internal battery set provides 17 minutes runtime at half load
 • Expandable runtime with multiple external battery packs (part# BP72V12-2U)
 • Innovative design makes unit adaptable for rackmount, tower, or stacking applications
 • Uses only 3 rack spaces (3U) in standard 19" rack
 • DB9 serial port for network interface; SNMP compatible
 • Slot for optional SNMP/web card (part# SNMPWEBCARD)
 • PowerAlert unattended shutdown software and 6 ft. network cable included
 • Compatible with Tripp Lite's Watchdog system service software
 • Fault tolerant auto-bypass maintains continuous utility output to connected equipment, even in cases where the UPS is overloaded or suffers an internal failure that requires service
 • Diagnostic LEDs
 • Battery replacement door
 • Mounting hardware included for 4 post rack enclosures, optional 2POSTRMKIT accessory enables installation in 2 post telecom racks
 • $250,000 Ultimate Lifetime connected equipment insurance
 • 2 year manufacturers product warranty

Specifications
• Output:
 - Output volt amp capacity (VA): 3000
 - Output watt capacity (watts): 2400
 - Output nominal voltage: 120V AC
 - Output voltage regulation: Maintains full-time sine wave output within 2% of 120V, less than 5% total harmonic distortion
 - Output frequency regulation: Regulates line frequency to 50/60Hz +/-0.05Hz
 - Outlet quantity/type: 9 outlets (4 NEMA5-15R, 4 NEMA5-20R, 1 NEMA L5-30)
 - Customized load management receptacles: 2 individually controllable load banks support automated load shedding and remote reboot on demand of locked network devices. Configurable via PowerAlert software to automatically switch off optional loads, like monitors, to increase available runtime for servers and other critical devices. (Bank A consists of 4 outlets/Bank B consists of 4 outlets)
 - Overload protection: Via 40A input breaker
• Input:
 - Maximum input amps: 22A/2844 watts max
 - Input connection type: NEMA L5-30P
 - Input cord length: 10ft. 10 gauge
 - Recommended electrical service: 30A 120V
• Battery:
 - Full load runtime: Internal batteries - 6 min.; 1 BP72V122U (3000VA) - 17 min.
 - Half load runtime: Internal batteries - 17 min.; 1 BP72V122U (1500VA) - 37 min.
 - Expandable battery runtime: Supports extended runtime with optional external battery pack BP72V122U (multi-pack compatible)
 - DC system voltage: 72 V DC
 - Typical battery lifespan: 3-6 years, depending on useage
 - Battery recharge rate: 2-4 hours to 90%
• Voltage Regulation:
 - Voltage regulation description: On-line, double-conversion power conditioning maintains output within 2% of 120 volts at all times
 - Overvoltage correction: Maintains output of 120V +/-2% during overvoltages to 138V AC
 - Brownout correction: Maintains output of 120V +/-2% during undervoltages to 80V AC
 - Sever brownout correction: At load levels less then 70%, UPS maintains output of 120V +/-2% during undervoltages to 65V AC
• LEDs, Alarms & Swithces:
 - Front panel LEDs: 6 LED STATUS DISPLAY: line power (green), online (green), bypass (yellow), on battery (green), overload (red), battery low (yellow); 4 LED LOAD/BATTERY LEVEL DISPLAY (100%, 75%, 50%, 25%)
 - Alarms: Multi-function audible alarm offers notification of UPS start, backup operation, low battery warning, overload, UPS fault and remote shutdown
 - Switches: Includes main power off/on switch, plus 1 switch to select battery charge/load level display
• Surge/Noise Suppression:
 - AC surge suppression: 2440 joules
 - AC suppression response time: Instantaneous
 - EMI/RFI AC noise suppression: Yes
• Physical:
 - Weight: 74.9 lbs (net); 90.3 lbs (shipping)
 - Dimensions (H x W x D): 5.25" x 17.5" x 19.8"
 - Cooling Method: Built-in cooling fan
 - Battery Access: User replaceable, how swap battery replacement supported via front access panel
