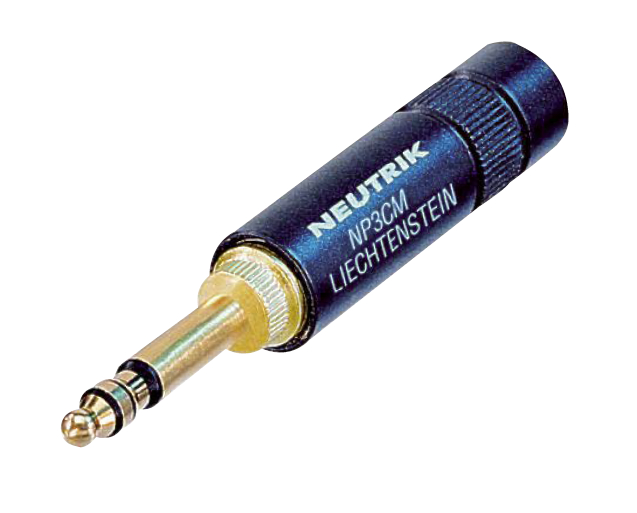

Neutrik NP3CM-B
MIL/B-Gauge Stereo Plug in Black

OUR PART #:  NP3CM-BLACK

The NP3CM-B is a 0.206" MIL-plug (MIL-P-642/5A) from Neutrik comes with a black metal housing and brass contacts.
Learn More
Our Price: $6.92
List Price: $9.90
Save up to 41% when you order by quantity!
  • Buy 25: $6.25 each.
  • Buy 50: $6.03 each.
  • Buy 100: $5.81 each.
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NP3CM-B
Qty:
Similar Products

The NP3CM-B is a 0.206" MIL-plug (MIL-P-642/5A) from Neutrik comes with a black metal housing and brass contacts. Professional phone plugs in MIL type design according MIL standard MIL-P-642/*.  They are featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel to meet the high requirements for military communication equipments.  These plugs are not compatible with standard 1/4" jacks (acc. EIA RS453) and patch panels.

Neutrik NP3CM-B Features:

  • 1/4" B-Gauge and MIL type plugs
  • All metal design, chuck type strain relief, no rivets
  • Meets all prevailing standards
  • One-piece Tip conductor ensures secure conductivity
  • Metal shell and chuck type cable retention - robust and dependable
  • Available as plug fingers only for overmolding.

Neutrik NP3CM-B Specifications:

  • Product:
    • Title: NP3CM-B
    • Connection Type: Plug
    • Gender: male
  • Electrical:
    • Contact resistance: depends on mating connector m ohm
    • Dielectric strength: 1 kVdc
    • Insulation resistance: > 2 G ohm (initial)
    • Rated current per contact: depends on mating connector A
    • Rated voltage: < 50 V
  • Mechanical:
    • Cable O.D.: 4 - 7 mm
    • Lifetime: > 1000 mating cycles
    • Wiresize: 0,5 mm²
    • Wiresize: 20 AWG
    • Wiring: Solder contacts
  • Material:
    • Bushing: Polyacetal (POM) + PU
    • Contact plating: 2 µm Brass
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Brass (CuZn39Pb3)
    • Shell plating: Black
    • Strain relief: Polyacetal (POM)
  • Environmental:
    • Standard compliance: MIL-P642/5A
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -4° F to 149° F (-20 °C to +65 °C)
