QSC ISA 800Ti 2-Channel Power Amplifier, 800W per Channel at 70V

OUR PART #: ISA800TI MFR #: ISA800TI

Copied to clipboard

Designed as a cost-effective solution specifically for sound contractors, QSC's ISA800TI has isolated 25, 70 and 100 Volt outputs for distributed audio systems... ...Read more

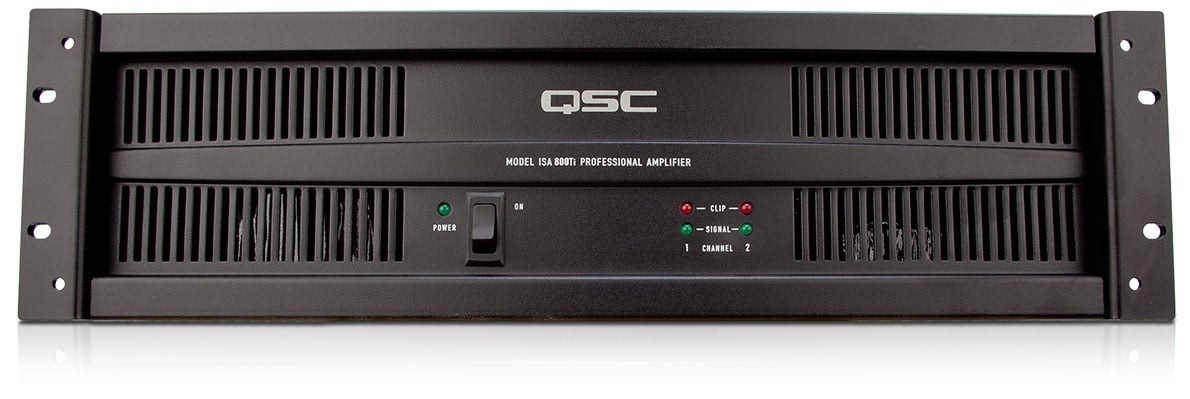

QSC ISA 800Ti 2-Channel Power Amplifier, 800W Per Channel At 70V Image 1
QSC ISA 800Ti 2-Channel Power Amplifier, 800W Per Channel At 70V Image 2
QSC ISA 800Ti 2-Channel Power Amplifier, 800W Per Channel At 70V Image 3
QSC ISA 800Ti 2-Channel Power Amplifier, 800W Per Channel At 70V Image 4
QSC ISA 800Ti 2-Channel Power Amplifier, 800W Per Channel At 70V
Our Price: $1,640.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$46/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Designed as a cost-effective solution specifically for sound contractors, QSC's ISA800TI has isolated 25, 70 and 100 Volt outputs for distributed audio systems, and a comprehensive feature set to make this unit a rugged, cost-effective power solution for any permanently-installed sound system. Unique among distributed sound power amplifiers, it'll drive 8 Ω or 4 Ω loads and a distributed system on the same channel simultaneously. This enables a contractor to reduce the number of required amplifier channels by allowing a limited number of distributed speakers to be attached to the same amp as is powering the main sound system. Housed in a rugged 3-U chassis, all seven models feature rear panel gain controls for tamper resistant operation with 2 dB detentes for quick and repeatable settings. Inputs include both XLR and detachable Euro-style connectors. Outputs feature covered barrier strip connectors for safety agency compliance, and for added versatility, a DataPort V2 (Version 2) terminated with an HD-15 connector is provided for use with DPV2-compatible signal processing accessories such as the XC-3 Crossover, SF-3 Subwoofer Filter, LF-3 Low Frequency Filter and the DSP-3 with external power supply. Selectable high-pass filters are included to protect speakers and prevent speaker transformer saturation with minimal effect on program material. The ISA800TI provides additional protection circuitry including DC, infrasonic, thermal overload, RF and short circuit protection.

Features

  • 800 W stereo for 70 V/100 V systems, 450 W @ 8 Ω
  • 3U chassis with rear-mounted gain controls
  • Independent, defeatable clip limiters reduce distortion
  • Selectable high-pass filters protect against transformer saturation and driver overexcursion
  • Includes extensive DC, infrasonic, thermal overload, and short circuit protection

Specifications

  • 8 Ω 20 Hz - 20 kHz 0.1% THD: 450 W
  • 4 Ω 20 Hz - 20 kHz 0.1% THD: 650 W
  • 2 Ω 1 kHz 1% THD: 1200W
  • 70 V or 100 V 50 Hz - 16 kHz 0.5% THD: 800 W
  • 25 V 50 Hz - 16 kHz 0.5% THD: 500 W
  • Bridged Mono 8 Ω 1kHz 0.1% THD: 1500 W
  • Bridged Mono 4 Ω 1 kHz 1% THD: 2400 W
  • 140 V or 200 V 50 Hz - 16 kHz 0.5% THD: 1600 W
  • Signal to Noise (20 Hz - 20 kHz): 100 dB
  • Distortion (SMPTE-IM): < 0.02%
  • Input Sensitivity @ 8 Ω: 1.07 V (+2.8 dBu)
  • Voltage Gain @ 8 Ω: 56.2x (35 dB)
  • Output Circuitry: Class H
  • Distortion (Typical):
    • 20 Hz - 20 kHz: 10 dB below rated power: Less than 0.03% THD, 4 Ω and 8 Ω
    • 1.0 kHz and below: full rated power: Less than 0.03% THD, 4 Ω and 8 Ω
  • Frequency Response, 10 dB below rated output power: 20 Hz - 20 kHz, +0/-1 dB, -3 dB points: 5 Hz + 50 Hz
  • Damping Factor (Direct Outputs): > 250 @ 8 Ω
  • Output Regulation: < 1.5 dB
  • Input Impedance: 10 kΩ unbalanced, 20 kΩ balanced
  • Input Clipping: 10 Vrms (+22 dBu)
  • Cooling: Continuously variable speed fan, back-to-front air flow
  • Connectors, each channel:
    • Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
    • Output: Covered barrier strips
    • DataPort V2: HD-15 connector
  • Controls:
    • Front: AC switch
    • Rear: Ch. 1 and Ch. 2 gain knobs, 10-position DIP switch
  • Indicators: PWR-ON Green LED, SIGNAL Green LED (1 per channel), CLIP Red LED (1 per channel)
  • Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection; Stable into reactive or mismatched loads
  • Power Requirements: 120, 230, VAC, 50-60 Hz
  • Load Protection: On/off muting; Triac crowbar: ISA 750
  • Rack-mount: 3U
  • Dimensions: 19" x 5.25" x 15.9" (48.3 x 13.3 x 40cm)
  • Weight: 57 lbs. (26 kg)
  • Note: specifications and further information can be found within the items located under the "Documentation" tab above.
