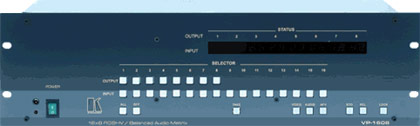

Kramer VP1608
16 x 8 RGBHV / Audio Matrix Switcher

OUR PART #:  VP1608

The Kramer VP-1608 is a high performance 16x8 RGBHV / balanced audio stereo matrix switcher. It is a true matrix switcher, routing any input to any or all outputs simultaneously.
Learn More
Our Price: $3,312.00
List Price: $4,140.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP1608
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VP-1608 is a high performance 16x8 RGBHV / balanced audio stereo matrix switcher. It is a true matrix switcher, routing any input to any or all outputs simultaneously. There are many updated features in this design, including audio-breakaway, so that audio can be switched independently from video. 15 preset memory locations are provided for quick access to common configurations. In addition, the TAKE button allows the user to place multiple switches in a queue, and then activate them with one touch of this button. For clean transitions when switching between non-genlocked sources, the unit has a "delayed switching" mode ranging from Omsec to 400msec. The VP-1608 includes a unique vertical and horisontal sync - pulse solution. There are several ways to control the VP-1608: via front-panel buttons, via IR remote control, and via RS-232 and RS-485 serial control, through which input and output audio levels may be controlled as well. The machine is dependable, rugged and fits into three vertical spaces (3U) of a standard 19" rack. The VP-1608, with its FLASH memory, allows upgrade to the latest Kramer firmware via Internet download.

Specifications:

  • Inputs: 16 x 3 video (RGB) 0.7Vpp/75ohm on BNCconnectors. 16 x 2 H&V, TTL level on BNC connectors. 16 balanced audiostereo on detachable terminal blocks
  • Outputs: 8 x 3 video (RGB) 0.7Vpp/75ohm on BNCconnectors.8 x 2 H&V, TTL level/75ohm an BNC connectors. 8 balanced audiostereo on detachable terminal blocks
  • Video Bandwidth (-3dB): 400MHz
  • Audio Bandwidth (-3dB): 30kHz
  • Video S/N Ratio: 71.7dB
  • Audio S/N Ratio: 74.5dB unweighted (1Vpp)
  • Video Crosstalk: -62.5dB @ 5MHz
  • Control: Front panel switches and IR. RS-232 and RS-485 may also control input and output audio levels
  • Audio Control: Mute, - 46dB to +10dB Gain Range, viaRS-232, RS 485, IR
  • Audio THD: 0.028% (1kHz)
  • Power Source: 230 VAC, 50/60 Hz (115 VAC, USA)
  • Accessories: Power cord, Windows - based controlsoftware, Null modem adapter
  • Dimensions (W x D x H): 19" x 7" x 5.25" (3 RU)
  • Weight: 12.2 lbs. (5.5 kg)
