Audix ADX20-IP
Instrument Microphone

OUR PART #:  ADX20-IP

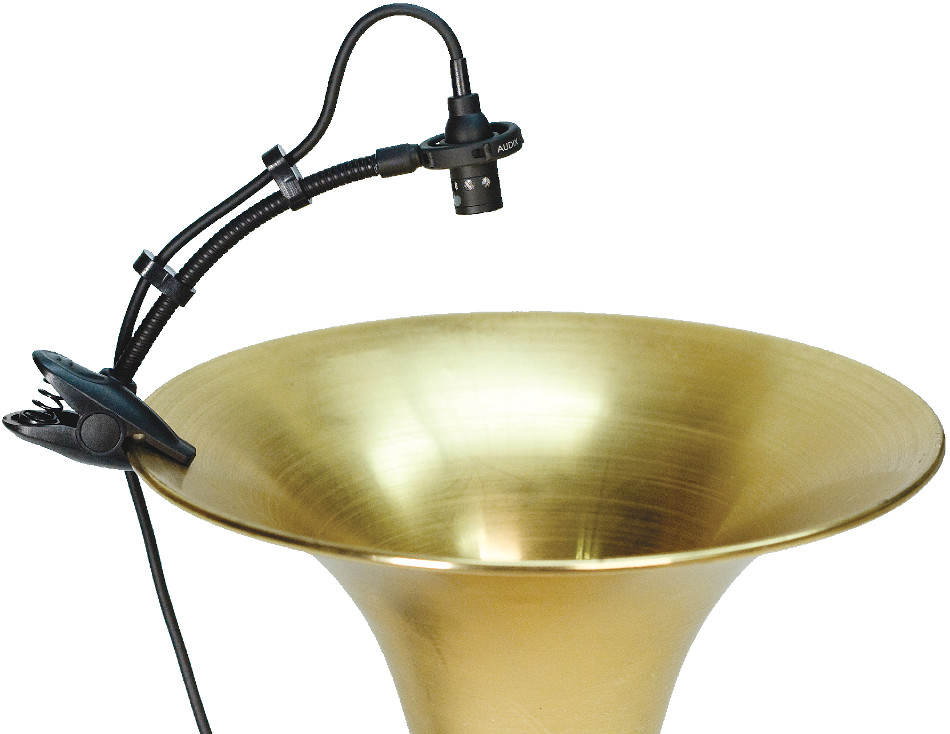

The Audix ADX-20i is a pre-polarized condenser microphone designed to handle a wide variety of clip-on applications.
Learn More
Our Price: $189.00
List Price: $215.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audix ADX20-IP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Audix ADX-20i is a pre-polarized condenser microphone designed to handle a wide variety of clip-on applications. The ADX20i is sonically superior as well as aesthetically pleasing and is ideally suited for saxophone, trombone, trumpet and other brass instruments. With a smooth uniform response over a frequency range of40 Hz – 20 kHz, the ADX-20i provides a rich, warm sound not typical of microphones this size. It is machined from solid brass and has a low reflective black e-coat finish. The ADX-20i operates on phantom power (9-52 volts) with the preamp module provided (APS-910). It may be used in battery mode with optional phantom power adapter (APS-911). The ADX-20i can be utilized with a wireless system. Depending on the brand of wireless and the connector configuration of the instrument body pack, the ADX-20i connector would need to be modified accordingly. Low noise electronic circuitry, and balanced low impedanceoutput allow for interference free performance even with long cable runs.

Audix ADX20-IP Features:

  • High tension spring clamp keeps mic in place
  • Multi-position gooseneck
  • Highly accurate sound reproduction
  • Available in hypercardioid version (ADX-20i/hc)

Audix ADX20-IP Specifications:

  • Transducer Type:  Condenser (pre-polarized)
  • Frequency Response:  40 Hz - 20 kHz
  • Polar Pattern:  Cardioid
  • Output Impedance:  250 Ohms balanced
  • Open Circuit Sensitivity:  5.2 mV
  • Equivalent Noise Level:  29 dB (A weighted)
  • Signal to Noise Ratio:  65 dB (ref 1k @ 1 Pascal)
  • Power Requirements:  9 - 52v phantom
  • Maximum SPL:  130 dB
  • Cable/Connector:  Shielded 6’ cable terminating to aminiature 3 pin XLR-f
  • Phantom Adapter:  Mini XLR male - XLR male
  • Polarity:  Positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Housing:  Machined Brass
  • Gooseneck:  Flexible steel
  • Weight:  1.7 oz/4.7 grams (without cable)
