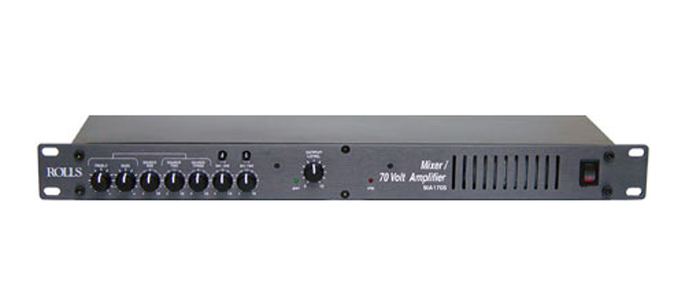

Rolls MA1705
Mixer / Amplifier, 70w/70v

OUR PART #  MA1705

Our Price: $299.00
List Price: $390.00
You save 23%! (Low Price Guarantee)
In Stock

The Rolls MA1705 is a single rack space mixer amplifier designed for installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 70 Watts of power when connected to a 70 volt speaker system.

Rolls MA1705 Features:

  • Two Microphone inputs with phantom power
  • Tone controls for each Mic input
  • Three stereo Source inputs (mixed to mono)
  • Bass and Treble controls on Sources Tow and Three
  • Priority ducking on Mic Two and Source One
  • Dual pre-master level Record Output
  • Fault protected power amp
  • Balanced 70 volt line output
  • Spring-loaded output terminals
  • Clip indication
  • FR4 Double-sided epoxy circuit board
  • Socketed ICs
  • Made in the U.S.A.

Rolls MA1705 Specifications:

  • Mixer  Specifications:
    • Input Impedance: Mic: 600 Ohms XLR balanced
    • Source: 22K Ohms RCA
    • Insert: 22K Ohms 1/4" TS unbal.
    • Max Input Level: Mic: -14 dBV Mic level Max
    • Source: 24 dBV
    • Insert: + 20 dB
    • Connectors: 2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1:1/4” TS
    • Phantom Power: +12 VDC
    • Max Gain: Mic: 60 dB
    • Source: 26 dB
    • Tone Controls: +/-12 dB 100 Hz Bass
    • +/-12 dB 11kHz Treble
    • Noise Floor: - 80 dB
    • S/N Ratio: 96 dB
    • Priority Attenuation: 60 dB
  • Amplifier  Specifications:
    • Recommended Load: 70 Volt line (70 Watts maximum)
    • Frequency Response: 60Hz to 20 kHz
    • Size (W x H x D): 19" x 1.75" x 5" (48 x 4.5 x 12.7)
    • Weight: 5.5 lbs (2.5 kg)

Rolls MA1705
Mixer / Amplifier, 70w/70v

OUR PART #  MA1705

Product Information:

The Rolls MA1705 is a single rack space mixer amplifier designed for installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 70 Watts of power when connected to a 70 volt speaker system.

Rolls MA1705 Features:

  • Two Microphone inputs with phantom power
  • Tone controls for each Mic input
  • Three stereo Source inputs (mixed to mono)
  • Bass and Treble controls on Sources Tow and Three
  • Priority ducking on Mic Two and Source One
  • Dual pre-master level Record Output
  • Fault protected power amp
  • Balanced 70 volt line output
  • Spring-loaded output terminals
  • Clip indication
  • FR4 Double-sided epoxy circuit board
  • Socketed ICs
  • Made in the U.S.A.

Rolls MA1705 Specifications:

  • Mixer  Specifications:
    • Input Impedance: Mic: 600 Ohms XLR balanced
    • Source: 22K Ohms RCA
    • Insert: 22K Ohms 1/4" TS unbal.
    • Max Input Level: Mic: -14 dBV Mic level Max
    • Source: 24 dBV
    • Insert: + 20 dB
    • Connectors: 2: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1:1/4” TS
    • Phantom Power: +12 VDC
    • Max Gain: Mic: 60 dB
    • Source: 26 dB
    • Tone Controls: +/-12 dB 100 Hz Bass
    • +/-12 dB 11kHz Treble
    • Noise Floor: - 80 dB
    • S/N Ratio: 96 dB
    • Priority Attenuation: 60 dB
  • Amplifier  Specifications:
    • Recommended Load: 70 Volt line (70 Watts maximum)
    • Frequency Response: 60Hz to 20 kHz
    • Size (W x H x D): 19" x 1.75" x 5" (48 x 4.5 x 12.7)
    • Weight: 5.5 lbs (2.5 kg)
