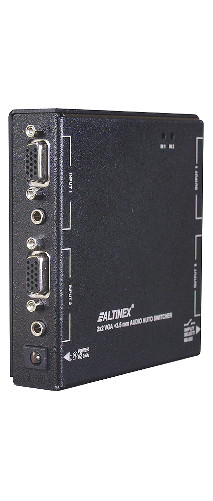

Altinex MX2106AV 2-In & 2-Out VGA + 3.5mm Audio Auto-Switcher Image 1
Altinex MX2106AV 2-In & 2-Out VGA + 3.5mm Audio Auto-Switcher
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Altinex MX2106AV is a 2-In, 2-Out VGA + 3.5mm AUDIO Auto-Switcher. The MX2106AV automatically switches on signal detection, but may also be controlled manually if desired. The MX2106AV is designed to switch VGA signals and stereo audio. The unit is encased in a solid metal enclosure and ships with an external, 9V 500mA, power adapter.

Override switching is made through the INPUT SELECT/RS-232 input. Manual override switching is made via a contact closure on the INPUT SELECT jack. This switch may be used for manual control, or the contact closure may be controlled from a control system. RS-232 control is accomplished by sending ASCII commands to select either Input 1 or Input 2.

Altinex MX2106AV Features:

  • Automatic switching on signal detect
  • Manual override available
  • Stereo Audio
  • Resolution from VGA - UXGA

Altinex MX2106AV Specifications:

  • Input:
    • VGA: (2) 15 Pin HD Female
    • Audio: (2) 3.5mm Jack
    • Control: 3.5mm Jack
  • Output :
    • VGA: (2) 15 Pin HD Female
    • Audio: (2) 3.5mm Jack
    • Compatibility: Audio + VGA thru UXGA
  • Miscellaneous :
    • Finish: Black
    • Height: 4.40 in.
    • Width: 4.08 in.
    • Depth: 1.00 in.
    • Weight: 0.4 lbs
