ADJ STAGE-PAK-1
DMX Lighting Controller Package

OUR PART #:  STAGE-PAK-1

Complete your par can setup with by tying it all together with the Stage Pak 1 from ADJ.
Learn More
Our Price: $349.99
List Price: $479.95
You save 27%!
Write the first review.
ADJ STAGE-PAK-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Complete your par can setup with by tying it all together with the Stage Pak 1 from ADJ. This package includes a quality constructed DMX controller that offers you the ability to fully control the dimming and on/off of your par can setup via the two DP-415 dimmer switches/packs that are also included. The controller operates in 3 separate modes and offers a range of customization and built-in programs. The Dimmer Switches are 4-channel compact units offering the ability to plug in eight separate light fixtures each, for a total of 16 using both DP-415s. The Stage Setter 8 and two DP-415s are essential components to any par can lighting production. Functioning on standard DMX-512 protocol as well as MIDI compatible and including fog machine output control, the Stage Pak 1 can be tied into your entire production system with ease. These portable devices are perfect for any size stage production, permanent or mobile.

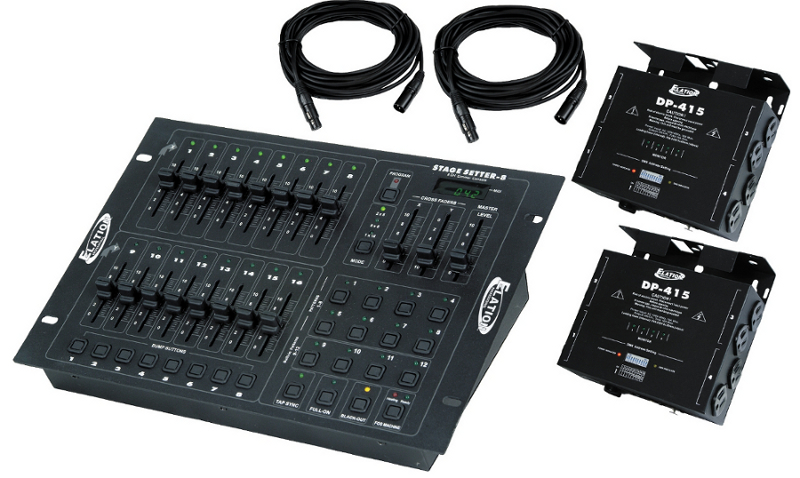

ADJ Stage Pak 1 Includes:

  • 1 x Stage Setter-8 16-channel DMX Controller
  • 2 x DP-415 4-channel DMX Dimmers
  • 2 x 25' XLR to XLR cable

ADJ Stage Pak 1 Features:

  • Stage Setter-8 Features:
    • An Easy to use 16 Channel DMX Controller
    • Three different operating modes; 2 x 8 (2 banks - 8 channels), 8 x 8(8 channels), 1 x 16 (1 bank - 16 channels)
    • 8 or 16 channel DMX operation
    • Four built-in programs
    • Eight user programmable programs
    • Fog machine output control (compatible with ADJ Vaporizer, Stallion,MB-700, and others)
    • XLR polarity switch
    • Standard DMX-512 protocol
    • MIDI compatible
  • DP-415 Features:
    • Compact 4 Channel DMX Dimmer
    • 2x 3-prong Edison plug per channel
    • On/off power switch
    • XLR In/Out
    • 10 position dip switch setting
    • Assign as a dimmer pack or switch pack
    • Changeable hanging bracket to hang on truss
    • LED "ON" indicators
    • Max Power: 15A Total, 5A per channel
    • Dimensions (LxWxD): 7" x 7" x 2.5"
    • Weight: 3 lbs.

To be the first to review this item, click here.
