Gefen Inc EXT-VGA-141LR
VGA Extender LR

OUR PART #:  EXT-VGA-141LR

The EXT-VGA-141LR VGA Extender LR from Gefen lets users extend video signals beyond the A/V rack. An analog signal can cover distances up to 330 feet with the VGA Extender Series.
Learn More
Gefen EXT-VGA-141LR - Transmitter Interface Panels
Gefen EXT-VGA-141LR - Receiver Interface Panels
Gefen EXT-VGA-141LR - Bottom/DIP Switch Panel View

Click a thumbnail to see more images. (5 total)

Our Price: $308.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-VGA-141LR
Qty:
In Stock

Similar Products

The EXT-VGA-141LR VGA Extender LR from Gefen lets users extend video signals beyond the A/V rack. An analog signal can cover distances up to 330 feet with the VGA Extender Series. Industry standard Category 5e (CAT-5e) cable is used for the extension.

How It Works
The VGA Extender LR sender unit connects to your source using the supplied cable. while the receiver unit connects to your display up to 330ft away, then you can use a single CAT-5 cable to connect the sender and the receiver together, flawlessly extending your video.

Note: This VGA Extender includes a trim-pot for fine video adjustment.

Gefen EXT-VGA-141LR Includes:

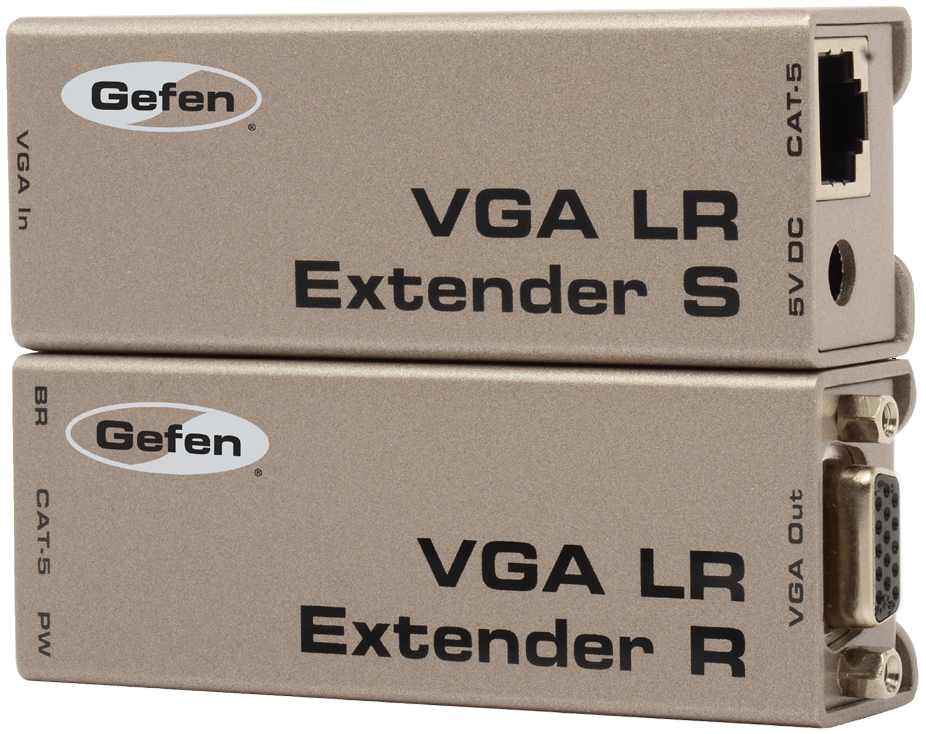

  • VGA Extender S Sender Unit
  • VGA Extender R Receive Unit
  • 6-foot VGA cable (M-F)
  • One 5V external power supply

Gefen EXT-VGA-141LR Features:

  • Extends any VGA or high definition component display up to 330ft (100meters)
  • One CAT-5e cable for extension
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200

Gefen EXT-VGA-141LR Specifications:

  • Video Amplifier Bandwidth: 350 MHz
  • Actual Bandwidth: 120 MHz
  • Input Video Signal: 1.2 volts p-p
  • Input Sync Signal: 5 volts p-p (TTL)
  • Horizontal Frequency Range: 15-70 KHz
  • Vertical Frequency Range: 30 - 170 Hz
  • Video In: HD-15 male
  • Video out: HD-15 female
  • Link Connector: RJ-45 Shielded
  • Power Supply: 5V DC
  • Power Consumption: 5 watts (max.)
  • Dimensions (WxHxD): 1" x 1" x 4"
  • Shipping Weight: 3 lbs
