ETC/Elec Theatre Controls S4R

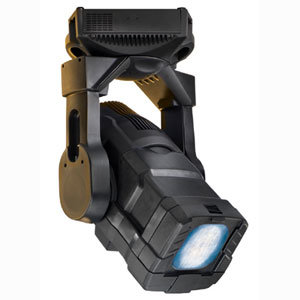

Source Four Revolution Automated Ellipsoidal in Black, No Connector

OUR PART #:  S4R

Imagine a high performance Source Four® Zoom™ ellipsoidal equipped with motorized pan, tilt, zoom and on-board dimming.
Learn More
Our Price: $4,605.00
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls S4R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Imagine a high performance Source Four® Zoom™ ellipsoidal equipped with motorized pan, tilt, zoom and on-board dimming. Add a 24-frame capacity gel scroller that borrows from Wybron’s famed Coloram® technology. Couple that with an exclusive QuietDrive™ motor control for amazing low-noise performance. All of the automated parameters required by the theatrical lighting designer are combined to create the Source Four Revolution®. Need additional beam control? Revolution’s two module bays accept any two of the four optional beam-control modules. And these modules insert without tools or fixture disassembly. All modules are auto-sensing and require no patching or internal configuration changes to the fixture. True “plug-and-play” convenience!

Features:

  • 750W, 77V QXL lamp has the proven characteristics of the 750W HPL with increased lumen output and patented quarter-turn insertion
  • Built-in Pulse Width Modulated dimmer
  • Auto-ranging 100V to 240V power supply and on-board dimming for global convenience
  • 24-frame integrated color scroller with convenient quick change gel-string cartridge
  • 540Âş Pan / 270Âş Tilt
  • 15Âş-35Âş Zoom
  • Automated crisp to soft focus
  • Internal Media Frame for diffusion or other user media choice
  • Two plug-and-play module bays for optional beam control modules
  • Rugged die-cast aluminum construction
  • Suitable for hanging in any orientation

Specifications:

Physical

  • Die cast aluminum construction
  • Rugged plastic covers for field-serviceable areas
  • CE marked and ETL tested to UL 1573 standards
  • High strength yoke for hanging in any orientation

Electrical / Data

  • 100V-240V, 50/60Hz, 950W peak power consumption
  • Flicker-free electronic UPS and internal dimmer are autoranging for world-wide use.
  • Power input via PowerCon™ connector.
  • Efficient CAN-BUS protocol for simplified internal wiring harness
  • Rotary switch address assignment

Lamp

  • QXL™ 750W/77V Maximum
  • QXL – Quick eXchange Lamp provides one-hand replacement in seconds and disconnects lamp power automatically
  • Ultra compact tungsten filament geometry contained in a Krypton/Xenon quartz envelope
  • Both 300 hr. high-output and 1500 hr. long-life lamps available

Optical

  • Dual aspheric zoom lens system with deposition antireflective coating
  • Faceted borosilicate reflector with dichroic cold mirror coating reflects greater than 95% of visible light
  • 90% of infrared radiation (I/R heat) removed from projected light beam
  • Reflector secured with anti-vibration shock mounts
  • Lenses easily accessible for cleaning
  • Tool-free, one-hand lamp centering (X/Y) and peak/flat (Z) adjustmentknobs

Optional Modules

  • Auto-sensing plug-and-play modules for additional features.
  • Iris Module – for beam size control down to 2.5°
  • Shutter Module – 4 blades with 90° rotation for full-function framing
  • Static Wheel Module – 3 positions plus open
  • Rotating Wheel Module – 3 positions plus open -- Indexes with 16-bitaccuracy

Note: Static Wheel and Rotating Wheel modules accept M-sized steel or glass gobos and filters
