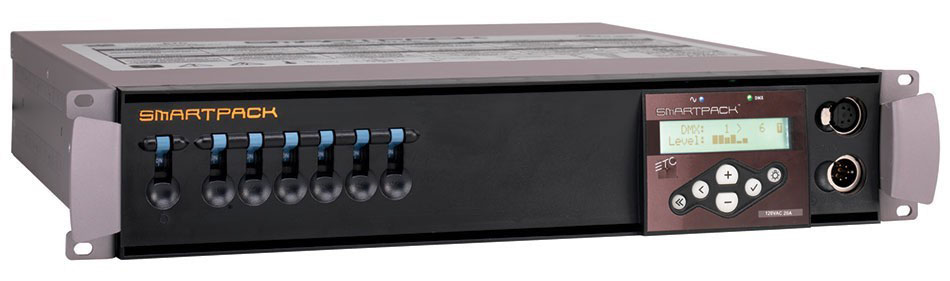

ETC/Elec Theatre Controls SL620V SmartPack Dimmer
6 Channel, 20 Amp, Single Multi-Pin Connector

OUR PART #:  SL620V

Responding to the needs of the portable dimming industry, ETC brings the Sensor level of technology to portable dimmer packs with the SmartPack.
Learn More
Our Price: $2,145.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls SL620V SmartPack Dimmer
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Responding to the needs of the portable dimming industry, ETC brings the Sensor level of technology to portable dimmer packs with the SmartPack. The SmartPack line of portable dimmer packs is designed to provide SCR-based, professional quality product in a rugged 19" 2-space rack mount package. Available with either six 2400-watt dimmers or twelve 1200-watt dimmers, SmartPack is the simple-to-use lighting-control solution for small entertainment or roadshow applications; bands, DJ's, or danceclubs; nightclub acts, school and church programs.

SmartPack does DMX and a whole lot more. With the built-in presets and sequencer, SmartPack can run on its own for permanent displays and presentations, no need for a console. The sequencer makes it easy to program sophisticated fade and wait times directly from the facepanel. Once programmed, the Auto-Restart option allows for completely unattended operation day after day. With a wide range of output options and multi-language capability as standard, SmartPack is ready to travel. Be ready to go, ready for anything.

The SmartPack was designed from the outside in. The all-steel rugged case passes the US Transport road test and tolerates extreme vibration - up to 30g. The attractive front panel protects the circuit breakers from cables and accidental switches. Internal construction simplifies manufacturing and service. Integrated into a single high-performance plug-in power block, the SCR's are replaceable in minutes without soldering. Units are easily changed from single to three-phase operation as needed.

ETC SL620V SmartPack Dimmer Features:

  • Packed with ETC dimming performance and reliability
  • Maximum density available for minimum cost
  • Built-in Presets (32) and Sequencer for stand alone operation
  • True SCR reliability based on Sensor technology
  • All magnetic circuit breakers, fully rated
  • DMX512A Compatible
  • Wide Range of output options
  • CE compliant, UL and cUL listed

NOTE: The 20A PowerCon connector used in SmartPack Portable Packs is a custom version of Neutrik's NAC3MPB connector designed for circuit board mounting. The Neutrik part number for the mating connector or cable power out is NAC3FCB.
