ETC SL620B SmartPack Portable Pack with Stage Pin Connectors, 6 20A Circuits

OUR PART #: SL620B MFR #: 7020A1100-B

Copied to clipboard

Responding to the needs of the portable dimming industry, ETC brings the Sensor level of technology to portable dimmer packs with the SmartPack. ...Read more

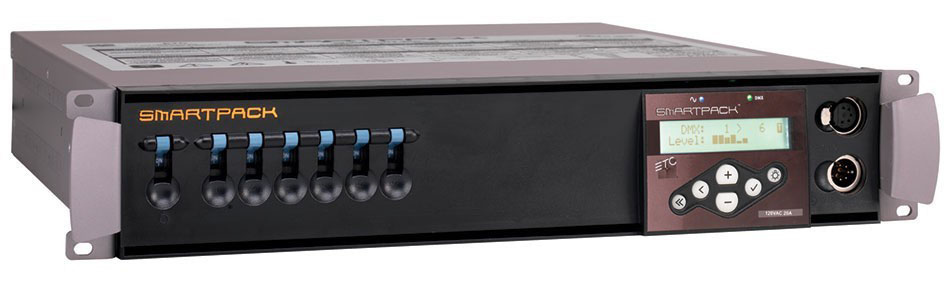

ETC SL620B SmartPack Portable Pack With Stage Pin Connectors, 6 20A Circuits Image 1
ETC SL620B SmartPack Portable Pack With Stage Pin Connectors, 6 20A Circuits
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Responding to the needs of the portable dimming industry, ETC brings the Sensor level of technology to portable dimmer packs with the SmartPack. The SmartPack line of portable dimmer packs is designed to provide SCR-based, professional quality product in a rugged 19" 2-space rack mount package. Available with either six 2400-watt dimmers or twelve 1200-watt dimmers, SmartPack is the simple-to-use lighting-control solution for small entertainment or roadshow applications; bands, DJ's, or danceclubs; nightclub acts, school and church programs.

SmartPack does DMX and a whole lot more. With the built-in presets and sequencer, SmartPack can run on its own for permanent displays and presentations, no need for a console. The sequencer makes it easy to program sophisticated fade and wait times directly from the facepanel. Once programmed, the Auto-Restart option allows for completely unattended operation day after day. With a wide range of output options and multi-language capability as standard, SmartPack is ready to travel. Be ready to go, ready for anything.

The SmartPack was designed from the outside in. The all-steel rugged case passes the US Transport road test and tolerates extreme vibration - up to 30g. The attractive front panel protects the circuit breakers from cables and accidental switches. Internal construction simplifies manufacturing and service. Integrated into a single high-performance plug-in power block, the SCR's are replaceable in minutes without soldering. Units are easily changed from single to three-phase operation as needed.

ETC SL620B SmartPack Dimmer Features:

  • Packed with ETC dimming performance and reliability
  • Maximum density available for minimum cost
  • Built-in Presets (32) and Sequencer for stand alone operation
  • True SCR reliability based on Sensor technology
  • All magnetic circuit breakers, fully rated
  • DMX512A Compatible
  • Wide Range of output options
  • CE compliant, UL and cUL listed
  • Note: The 20A PowerCon connector used in SmartPack Portable Packs is a custom version of Neutrik's NAC3MPB connector designed for circuit board mounting. The Neutrik part number for the mating connector or cable power out is NAC3FCB.
