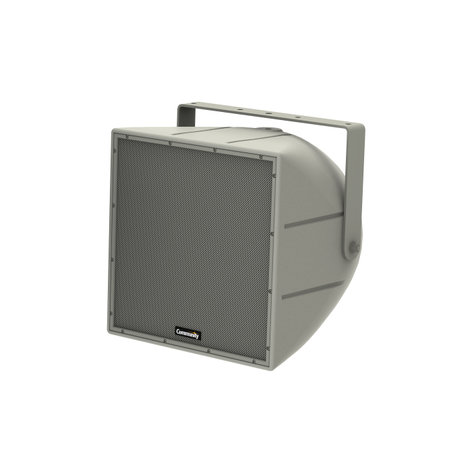

Community R.5COAX99
2-Way Coaxial Weather Resistant Full-Range Loudspeaker

OUR PART #:  R.5-COAX-99

A high fidelity, 2-way, full-range loudspeaker system, Community's R.5COAX99 is designed to deliver quality.
Learn More
Our Price: $908.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Community R.5COAX99
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A high fidelity, 2-way, full-range loudspeaker system, Community's R.5COAX99 is designed to deliver quality. full-range sound in a variety of indoor and outdoor environments. It has broad audio range, smooth frequency response, and high efficiency, all of which ensure both high-fidelity music reproduction and superb projection of clear intelligible speech with very low distortion levels. It includes a five-year limited product warranty; fifteen-year enclosure warranty.


  • Convention centers
  • Fill speaker for stadia, athletic fields, arenas and race tracks
  • Outdoor background music / paging systems
  • Theme and amusement parks
  • Fairgrounds, rodeos, air shows
  • Malls, cruise ships, skating rinks
  • Swimming pools
  • Portable sound systems

Community R.5COAX99 Includes:

  • (1) R.5COAX99 unit
  • (1) Yoke bracket, Light Grey
  • (1) Aiming strap

Community R.5COAX99 Features:

  • Weather-resistant, rotomolded UV enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • High fidelity
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • Optional 200W, 70V autoformer (sold separately)
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5COAX99B Specifications:

  • Loudspeaker Type: 2-way, coaxial, weather-resistant, full-range
  • Operating Range:
    • 80 Hz to 18 kHz
    • 90 Hz to 12.5 kHz (±3.5 dB)
  • Max Input Ratings:
    • 200W continuous, 500W program
    • 40 volts RMS, 89 volts momentary peak
  • Recommended Power Amplifier: 420W to 600W @ 8 ohms
  • Sensitivity (1W/1m):
    • 96 dB SPL (100 Hz to 13 kHz 1/3 octave bands)
    • 96 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output: 119 dB SPL / 126 dB SPL (peak)
  • Nominal Impedance: 8 ohms
  • Minimum Impedance: 3.8 ohms @ 9.9 kHz
  • Nominal –6dB Beamwidth:
    • H: 90° (+10° / -23°, 1.6 kHz to 12.5 kHz)
    • V: 90° (+4° / -30°, 1.6 kHz to 12.5 kHz)
  • Axial Q / DI: 10.7 / 10.3, 1.6 kHz to 12.5 kHz
  • Crossover Frequency: 2 kHz
  • Recommended Signal Processing: 60 Hz high pass filter
  • Drivers:
    • LF: 1 x 12”
    • HF: 1 x 1” exit titanium free, Ferrofluid-cooled
  • Driver Protection: DYNA-TECH protection circuitry
  • Input Connection: 12 foot (4 m) SJOW #16 gauge
  • Enclosure: Rotomolded LLDPE, Light Grey
  • Mounting/Rigging Provisions: (5) 3/8-16 rigging points
  • Grille: 3-layer WeatherStop™, Light Grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
  • Dimensions (HxWxD): 16" x 16" x 15.94" (406.4 x 406.4 x 404.88mm)
  • Weight:
    • Product: 35 lbs (15.9 kg)
    • Shipping: 42 lbs (19.1 kg)
  • Required Accessories: 24 dB/Oct high pass filter (contact your Sales Pro for more details)
  • Optional Accessories (sold separately): PMB Series pole mount brackets

     1. Sensitivity: Free field pink noise measurement at 20ft (6.1m) at 50% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
     2. Watts: All wattage figures are calculated using the rated nominal impedance
