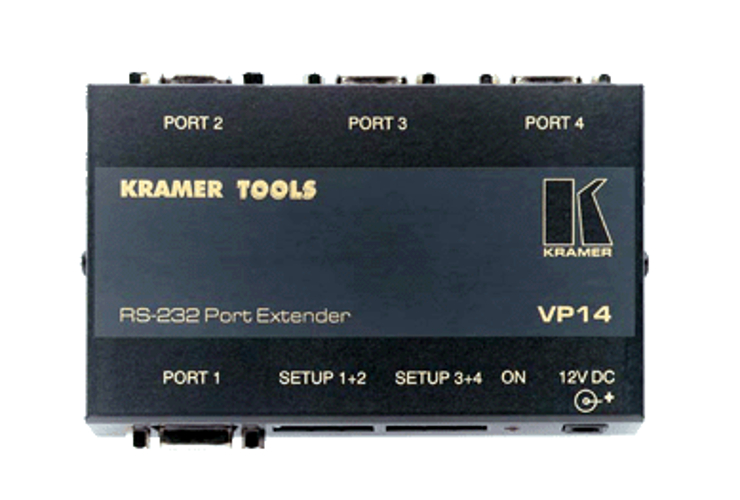

Kramer VP14
1:3 RS-232 Port Extender

OUR PART #:  VP14-KRAMER

The Kramer VP-14 is a unique product designed to distribute RS-232 commands as transmitted by a touch screen control system, personal computer, or other type of control system.
Learn More
Our Price: $144.00
List Price: $180.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP14
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VP-14 is a unique product designed to distribute RS-232 commands as transmitted by a touch screen control system, personal computer, or other type of control system. It allows the user to control up to three compatible devices when just one serial port or RS-232 card is available. Similarly, it could be used to control a single device using up to three controllers (eg. PCs). There are a total of four DB 9M ports, any of which can receive incoming RS-232. The incoming commands are then distributed to  the remaining ports. An extensive set of DIP switches allows the unit to be configured for use with crossed or straight (uncrossed) cables. The VP-14 was designed specifically for use with Kramer switchers and routers, but can be easily adapted for use with any other equipment, which uses RS-232 in null-modem configuration. A 12V power supply is included for typical operation. The VP-14 is part of the Kramer TOOLS family of compact, high quality, and cost effective solutions for a variety of applications.

Kramer VP-14 Specifications:

  • RS-232 Ports: 4 Null-modem RS-232-C compatible TX/RX signals
  • Power Source: 12 VDC, 30mA
  • Dimensions (WxDxH): 4.7” x 2.95” x 0.98” (12cm x 7.5cm x 2.5cm)
  • Weight: 0.28 kg. (0.62 lbs.) approx.
  • Accessories: Power supply, mounting bracket
  • Options: Model VA-50P power supply with six 12VDC outlets. RK-T1, RK-T3, 19” rack adapters
6-Outlet 12VDC 600mA Universal Power Supply
Kramer VA-50P 6-Outlet 12VDC 600mA Universal Power Supply
The Kramer VA-50P is a six outlet power supply designed to operate Kramer products which normally use an external 12VDC power transformer. This includes all units in the VM-50, VS-55, and VM-3 families, the Kramer TOOLS and Pico TOOLS ...
