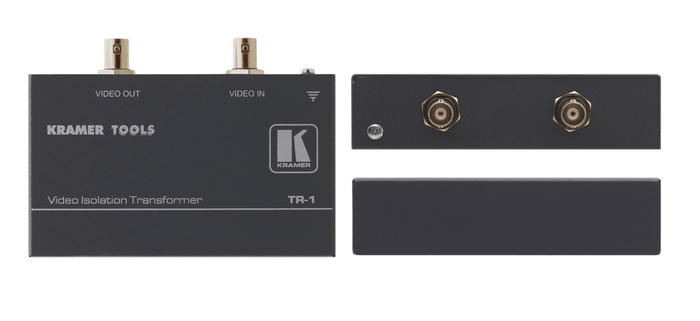

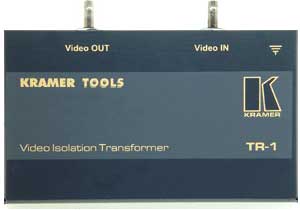

Kramer TR1
Video Isolation Transformer

OUR PART #:  TR1

The Kramer TR-1 is a high-resolution video isolation transformer, with a video bandwidth exceeding 5.8 MHz and excellent linearity...
Learn More
Our Price: $120.00
List Price: $150.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer TR1
Qty:
In Stock

Similar Products

The Kramer TR-1 is a high-resolution video isolation transformer, with a video bandwidth exceeding 5.8 MHz and excellent linearity, offering total galvanic isolation between input and output. The TR-1 can be used in all applications where interference problems due to improper grounding and different ground potentials affect the quality of the video signal. It is a purely passive unit, and is ideal for fieldwork. This machine is part of the Kramer TOOLS family of compact, high quality and cost effective solutions for a variety of applications.

Specifications
 • Input: 1 composite video, 1Vpp/75 ohm on a BNC connector
 • Output: 1 composite video, 1Vpp/75 ohm on a BNC connector
 • Max. Output Level: 4 Vpp/75 ohm
 • Bandwidth (-3dB): 5.8 MHz
 • Diff. Gain: 0.05%
 • Diff. Phase: 0.05 deg.
 • K-Factor: 1.2%
 • S/N Ratio: 73.4 dB
 • Tilt: 0.1% @ Pulse & Bar
 • Non-Linearity: 0.1%
 • Coupling: Transformer
 • Power Source: Passive
 • Dimensions (W x D x H): 4.7" x 2.88" x 1.2"
 • Weight: 0.75 lbs, approx.
 • Accessories: Mounting brackets
 • Option: RK-T1, RK-T3 19" rack adapter
