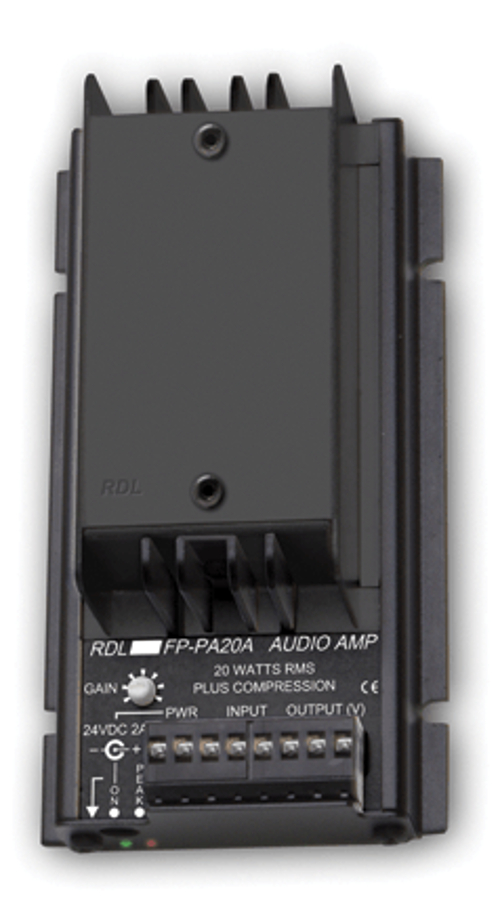

Radio Design Labs FP-PA20A
20W Power Amplifier with 70 & 100 V Outputs

OUR PART #  FP-PA20A

Our Price: $150.30
List Price: $201.05
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

Radio Design Labs' FP-PA20A features a balanced line level input that may be connected unbalanced. A front panel gain control is designed to be adjusted either manually or with a trimming screwdriver. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. Both a 70 V and 100 V amplified output are provided to drive corresponding speakers in a distributed sound system. Audio levels that could cause the amplified output to clip are compressed using two dynamic time constants designed to preserve aural transparency. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics and preventing the compressor from increasing feedback potential when the amplifier is used for paging. The FP-PA20A produces average audio levels and audio clarity normally expected of amplifiers delivering much higher output power.

NOTE: Radio Design Labs' PS-24V2A power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24V2A power supply.

Radio Design Labs FP-PA20A Features:

  • 20 Watts RMS Constant Voltage Amplifier
  • 70 V and 100 V Outputs
  • Integral Audio Compressor to Control Clipping
  • High Overall Operating Audio Level
  • Maximized Audio Level for Output Power
  • Audio Quality Superior to Standard Amplifiers
24VDC, 2A Universal Power Supply with North American Plug-End CordRadio Design Labs PS24V2A 24VDC, 2A Universal Power Supply with North American Plug-End Cord

Radio Design Labs' PS24V2A is a 24 volt DC Switching Power Supply, with North American cord, 2 Amp output and DC Plug. Input:  100 to 240 VAC Output:  24 Vdc, 2 A (UL, CSA) Dimensions:  2 in. (5 cm) x 1.33 ...

In Stock

Free Shipping Available

Our Price:$70.79List Price: $94.71You save 25%!

Pole Mount Tray for RDL Module Radio Design Labs PM-1T Pole Mount Tray for RDL Module

The PM-1T is a tray that mounts above a projector using a standard (1.5" I.D.) round projector pole or any smaller round or rectangular pole. The tray accommodates up to two FP-PA20 Audio Power Amplifiers (for stereo operation) and two ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$80.35List Price: $107.48You save 25%!

Din Rail Mounting BracketRadio Design Labs DRA-35F Din Rail Mounting Bracket

The DRA-35F is a DIN rail mounting bracket that provides positive mounting for any RDL FLAT-PAK™ module. DIN rail mounting is ideal in locations subject to vibration, in confined spaces or where traditional rack mounting is not desired. ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$10.34List Price: $12.21You save 15%!

Radio Design Labs FP-PA20A
20W Power Amplifier with 70 & 100 V Outputs

OUR PART #  FP-PA20A

Product Information:

Radio Design Labs' FP-PA20A features a balanced line level input that may be connected unbalanced. A front panel gain control is designed to be adjusted either manually or with a trimming screwdriver. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. Both a 70 V and 100 V amplified output are provided to drive corresponding speakers in a distributed sound system. Audio levels that could cause the amplified output to clip are compressed using two dynamic time constants designed to preserve aural transparency. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics and preventing the compressor from increasing feedback potential when the amplifier is used for paging. The FP-PA20A produces average audio levels and audio clarity normally expected of amplifiers delivering much higher output power.

NOTE: Radio Design Labs' PS-24V2A power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24V2A power supply.

Radio Design Labs FP-PA20A Features:

  • 20 Watts RMS Constant Voltage Amplifier
  • 70 V and 100 V Outputs
  • Integral Audio Compressor to Control Clipping
  • High Overall Operating Audio Level
  • Maximized Audio Level for Output Power
  • Audio Quality Superior to Standard Amplifiers
