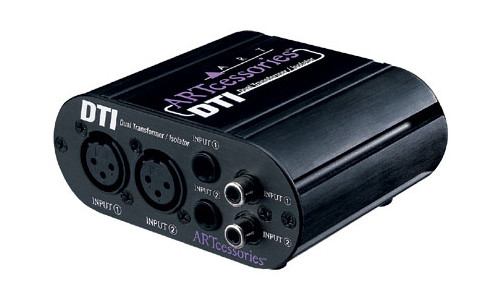

ART DTI Dual Transformer Isolator

OUR PART #: DTI MFR #: DTI

Copied to clipboard

With the ability to isolate two systems and reduce hum and ground-loop noise... ...Read more

ART DTI Dual Transformer Isolator Image 1
ART DTI Dual Transformer Isolator
Our Price: $79.99
List Price: $99.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

With the ability to isolate two systems and reduce hum and ground-loop noise, the DTI Dual Transformer/Isolator from ART is a passive audio interface that uses a pair of high performance transformers to totally separate input and output signal grounds. With an extremely flat and wide frequency response, DTI can maintain isolated balanced output while handling high signal levels for the clean and neutral sound to want with a variety of signal sources. Wound for 1:1 unity gain, transformers are designed to be used with impedance from 600 Ohms to 100K Ohms.

DTI can fit into virtually any audio set-up with its incredible connection versatility, including XLR, 1/4" phone, and RCA type phono connections on all inputs and outputs. Built in a black anodized all aluminium case, the rugged construction, passive design, and high-end specification make DTI ideal for making your audio systems connect safer, cleaner, and with the greatest efficiency.

Features

  • Isolates sound system components to eliminate ground noise
  • XLR, 1/4", and RCA inputs & outputs
  • Passive design
  • High-quality transformers
  • Rugged, anodized aluminum case

Specifications

  • Frequency Response: 10Hz-50kHz, +/-.5dB @ +4dBu
  • THD: .01% Typical @ 1kHz, +18dBu,< .05% @ 100Hz,+24dBu
  • Insertion Loss: .4dB @ 100k ohm load, 5.5dB @ 600 ohmload
  • Input Connections: XLR female balanced, 1/4" TRSunbalanced, and RCA type phono jacks
  • Output Connection: XLR male balanced, 1/4" TRSunbalanced, and RCA type phono jacks
  • Power Requirements: Passive
  • Dimensions (H x W x D): 1.75" x 4.2" x 3.5"
  • Weight: 0.75 lbs

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
