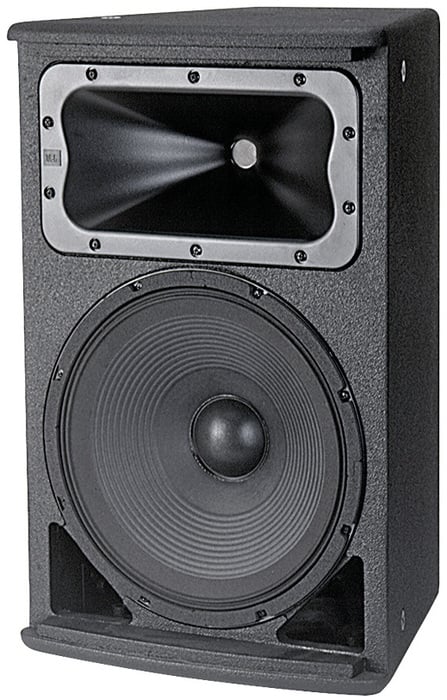

JBL AC2212/64 12" 2-Way Speaker, 60X40 Coverage, Black

The JBL AC2212/64 is a compact 2-way full range loudspeaker system comprised of one 300 mm (12") low frequency driver and one 38 mm (1.5") exit / 25 mm (1") voice-coil compression driver. The PT™ Progressive Transition™ waveguide provides 60° by 40° coverage. High-slope passive crossovers minimize band overlap and well-controlled off-axis response enhances arrayability.

The cabinet is fitted with M10 threaded suspension points. An optional U-bracket, as well as pre-engineered array bracketry, is available for easy installation. Four threaded inserts located on back of the enclosure allow attachment of an Omnimount™ or similar mounting bracket.

Applications

• Lecture halls
• Corporate learning centers
• Small performing arts facilities
• Theatrical sound design
• Auditoriums
• Sports facilities
• Themed entertainment venues
• Delay / fill locations of larger systems

Features

• 60° x 40° coverage
• PT (Progressive Transition) waveguide for good pattern control with low distortion.
• Bi-amp / passive switchable
• Optional U-bracket available (MTU-4)

Specifications

• Frequency Range (-10 dB): 50 Hz – 19 kHz
• Frequency Response (±3 dB): 55 Hz – 17 kHz
• Transducer (AES) Power Rating:
  • LF: 300W (1200W peak)
  • HF: 50W (200W peak)
• Long-Term (IEC) System Power Rating: Passive mode: 250W (1000W peak)
• Maximum SPL: Bi-amp mode:
  • LF: 120 dB-SPL cont avg (126 dB peak)
  • HF: 126 dB-SPL cont avg (132 dB peak)
• Maximum SPL: Passive mode: 120 dB-SPL cont avg (126 dB peak)
• Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), plus 4x M6 on rear for Omnimount 100 Series
• Dimensions (in vertical cabinet orientation) (H x W x D): 21.6" x 14" x 13.9" (548 x 355 x 352 mm)
• Net Weight: 40 lbs. (18.1 kg)
• Accessories:
  • MTU-4 U-Bracket
  • PAF-2k Planar Array Frame Kit: 2 pcs. ACC2212/64 with ASB6118 subwoofer center (max 60° total splay)
