JBL AC2212/95
12" Compact 2-Way Loudspeaker in White with 90° x 50° Coverage

OUR PART #:  AC2212/95-WHITE

The JBL AC2212/95 is a compact 2-way full-range loudspeaker system comprised of one 300 mm (12") low frequency driver and one 25 mm (1") voice-coil compression driver.
Learn More
Our Price: $1,172.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL AC2212/95
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL AC2212/95 is a compact 2-way full-range loudspeaker system comprised of one 300 mm (12") low frequency driver and one 25 mm (1") voice-coil compression driver. The PT Progressive Transition waveguide provides 90° by 50° coverage. High-slope passive crossovers minimize band overlap and well-controlled off-axis response enhances arrayability.

The cabinet is fitted with M10 threaded suspension points. Optional U-bracket, as well as pre-engineered array bracketry is available for easy installation. Four threaded inserts located on back of the enclosure allow attachment of an Omnimount™ or similar mounting bracket.

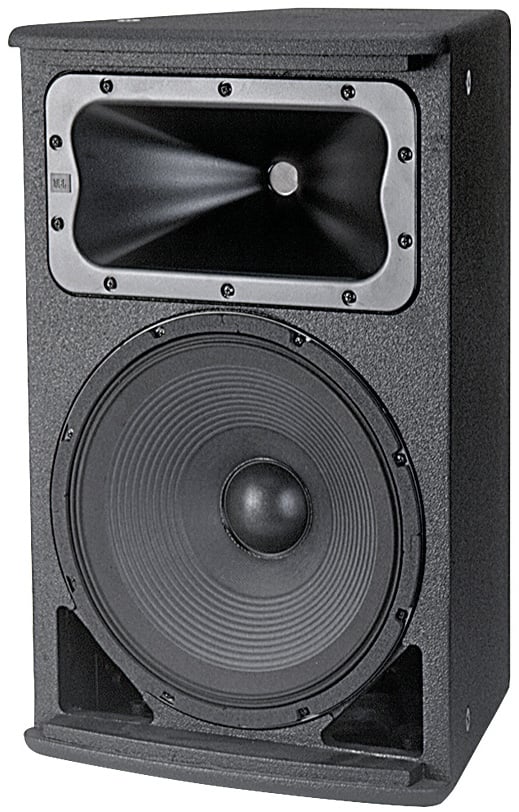

NOTE: The JBL AC2212/95 is shown above in black. Comes in white .

JBL AC2215/95 Features:

  • 90° x 50° Coverage.
  • PT™ProgressiveTransition™ Waveguide for good pattern control with low distortion.
  • Bi-Amp/Passive Switchable
  • Optional  U-Bracket Model MTU-4
  • Optional planar array frame kit PAF-2K 3-wide array with ASB6118 subwoofer center.
  • For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities, themed entertainment venues and in delay/fill locations of larger systems.

JBL AC2215/95 Specifications:

  • Frequency Range (-10 dB): 50 Hz – 19kHz
  • Frequency Response (±3 dB): 55 Hz – 17kHz
  • Transducer (AES) Power Rating:
    • LF:  300 W (1100 W peak)
    • HF:  30 W (120 W peak)
  • Long-Term (IEC)System Power Rating: Passive mode: 250 W (1000 W peak)
  • Maximum SPL: Bi-amp mode:
    • LF: 120 dB-SPLcont avg (126 dB peak)
    • HF: 126 dB-SPL cont avg (132 dB peak)
  • Maximum SPL:Passive mode: 120 dB-SPL cont avg (126 dB peak)
  • Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), plus 4x M6 on rear for Omnimount™ 100 Series
  • Dimensions (in vertical cabinet orientation): 21.6" H x 14" W x 13.9" D (548 x 355 x 352 mm)
  • Net Weight: 38 lbs (17.3 kg)

Accessories:

  • MTU-4 U-Bracket
  • PAF-2k Planar Array Frame Kit: 2 pcs. ACC2212/95 with ASB6118 subwoofer center (max 60° total splay)
U-Bracket for AC2212 (White)
JBL MTU-4 U-Bracket for AC2212 (White)
U-Bracket for models AC2212 (/95, /64 or /00).  Does not fit custom weather resistant models.
