Allen Products/Adaptive Technologies SM-075ASB
Stowable Speaker Mount, Pan and Tilt Adjustable, Black


The Adjustable SocketMount wall mounts and aims loudspeakers that are equipped with pole sockets.
Learn More
Our Price: $280.00
List Price: $350.00
You save 20%!
Write the first review.
Allen Products/Adaptive Technologies SM-075ASB
In Stock
Related Products

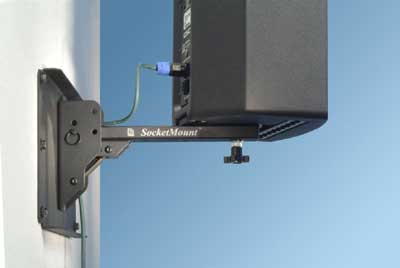

The Adjustable SocketMount wall mounts and aims loudspeakers that are equipped with pole sockets. Both pan and tilt rotations are provided for optimum aiming and it's support arm folds down when not in use. It's easy-on, easy-off feature allows loudspeakers to move to multiple locations such as other SocketMounts and tripod stands, thus reducing the need for more loudspeakers and saving floor space.

The SocketMount's unique expandable post assembly fits into the loudspeakers pole socket and, when tightened, locks the speaker onto the arm. An innovative screw drive tilt mechanism provides up to 15 degrees of down angle from the horizontal position while offering 180° of horizontal pan angle.

Three separate positioning points are offered on the arm for optimum spacing between the speaker and the wall. When not in use, the arm is quickly stowed against the wall, making it an ideal mount for both temporary and permanent installations.


  • Allows speakers to be moved from place to place
  • Saves floor space
  • Independent pan and tilt adjustments
  • Arm stows against wall when not in use
  • Expansion post assembly expands inside of speakers pole sockets
  • Post fits 1-3/8" & 1-1/2" sockets


  • Material: Alloy steel
  • Finish: Powder coat paint
  • Color: Black
  • Pan rotation: Max. 180° horizontal swivel
  • Tilt rotation: 15° down tilt from horizontal
  • Working Load: 50 lbs
  • Design factor: 10:1 ratio
  • Net weight: 6 lbs
  • Shipping weight: 7 lbs
  • Pack count: 1 unit/carton
