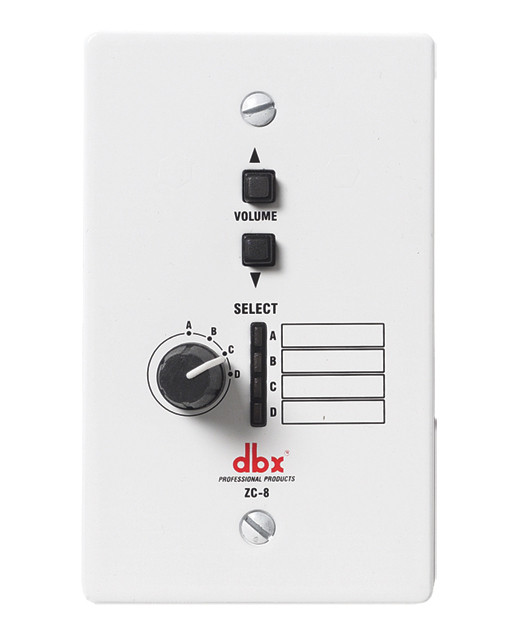

DBX ZC-8
Volume Control and Source Selector

OUR PART #:  ZC-8

dbx's ZC-8 provides both programmable source selection and volume control to ZonePRO devices.
Learn More
Our Price: $59.00
List Price: $74.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX ZC-8
Qty:
In Stock

Similar Products

dbx's ZC-8 provides both programmable source selection and volume control to ZonePRO devices.

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

dbx ZC-8 Specifications:

  • Connectors: 2x RJ-45
  • Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example, Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
  • Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
  • Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M(Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
  • Safety Agency Certifications: UL 60065, IEC 60065, EN 55013, E60065
