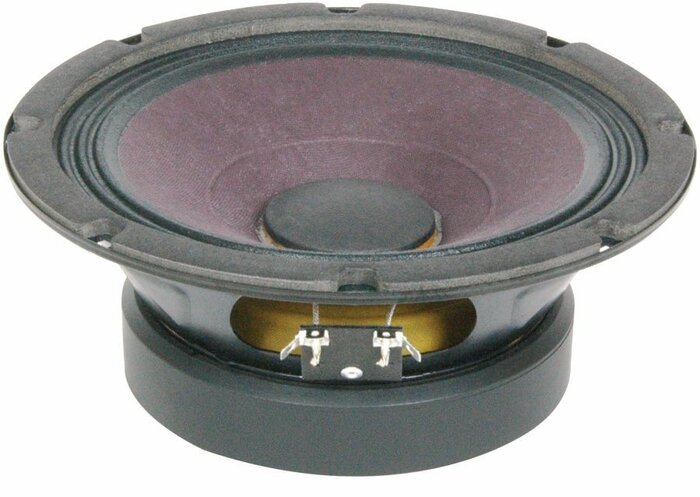

OUR PART #: BETA-8A MFR #: BETA-8A
Recommended for professional audio mid-bass applications or as a woofer in vented enclosures. Also suitable as a mid-bass speaker in sealed enclosures. ...Read more
Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.
Email customer service
Recommended for professional audio mid-bass applications or as a woofer in vented enclosures. Also suitable as a mid-bass speaker in sealed enclosures.
Specification
Nominal Basket Diameter 8", 203.2mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 225W
Music Program 450W
Resonance 65Hz
Usable Frequency Range 78Hz - 4.5kHz
Sensitivity*** 95.1dB
Magnet Weight 34 oz.
Gap Height 0.31", 7.92mm
Voice Coil Diameter 2", 50.8mm
Mounting Information
Recommended Enclosure Volume
Sealed 5.7-9.9 liters / 0.2-0.35 cu.ft.
Vented 8.5-19 liters / 0.3-0.67 cu.ft.
Driver Volume Displaced 46.3 cu.in. / 0.76 liters
Overall Diameter 8.24", 209.2mm
Baffle Hole Diameter 7.13", 181mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.22", 5.5mm
Mounting Holes B.C.D. 7.75", 196.9mm
Depth 3.5", 89mm
Net Weight 6.6 lbs, 3 kg
