Ashly WR-1
2 Control Level Wallplate Remote for Ashly 24.24M

OUR PART #:  WR-1

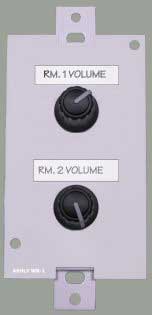

The WR-1 is an assignable, dual potentiometer remote volume control for the 24.24M.
Learn More
Our Price: $80.00
List Price: $100.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ashly WR-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The WR-1 is an assignable, dual potentiometer remote volume control for the 24.24M. Each volume control is connected to a euroblock jack terminal on the WR-1 circuit board, which in turn must be wired to the 24.24M back panel euroblock connector labeled "0 - 5 Volt Remote Level Control".

By connecting a volume control to a specific pin (1-8), that pin can be selected in software under to control the level of any combination of inputs or outputs. It is possible to simultaneously select the same input or output channel to multiple remote level control pins.

The level control is "attenuate only" meaning that the maximum setting of the control potentiometer (fully clockwise) results in 0 dB gain of the controlled channel. Windows are provided for user-generated labels.
