Kramer C-SM/2BF-6
4-Pin S-Video Male to 2-BNC Female Breakout Cable, 6 ft.

OUR PART #:  C-SM/2BF-6

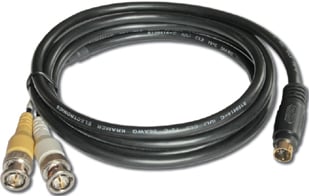

Kramer’s s-Video (Y/C) breakout cable is constructed of dual mini coax cables with a male s-Video (4-pin) connector on one end and 2 BNC’s on the other.
Learn More
Our Price: $5.60
List Price: $7.00
You save 20%!

5.0 / 5

★★★★★ 1 Review. Write Yours

Related Products

Kramer’s s-Video (Y/C) breakout cable is constructed of dual mini coax cables with a male s-Video (4-pin) connector on one end and 2 BNC’s on the other. They are used for converting an s-Video signal from the typical 4 pin format to higher quality dual BNC format preferred for long cable runs.

  • Quality Construction - Luminance (Y) and Chrominance (C) signals are passed through a high quality 26 AWG dual coax cable terminated with 4-pin mini DIN and high quality BNC connectors.
  • High Quality Connectors - Gold plated S-Video connectors for corrosion resistance and best possible connection, and 75 ohm BNC’s for correct impedance matching.
  • Flexible Applications - Perfect for integrating consumer products into commercial display systems.
  • Varied Selection of Lengths - Available in 1 or 6 foot versions and your choice of male BNC’s (C-SM/2BM-X) or female BNC’s (SM/2BF-X).
  • Quality Construction - Luminance (Y) and Chrominance (C) signals are passed through a high quality 26 AWG dual coax cable terminated with 4-pin mini DIN and high quality BNC connectors.
  • High Quality Connectors - Gold plated S-Video connectors for corrosion resistance and best possible connection, and 75 ohm BNCs for correct impedance matching.
  • Flexible Applications - Perfect for integrating consumer products into commercial display systems.
  • Varied Selection of Lengths - Available in 1 or 6 foot versions and your choice of male BNC’s (C-SM/2BM-X) or female BNC’s (SM/2BF-X).

Specifications:

CONSTRUCTION:

  • Coax Center Conductor: 26 AWG 7/34 tinned copper
  • Coax Jacket Colors: Yellow, white
  • Dielectric: Foam polyethylene
  • Draine Wire: 24 AWG 7/32 tinned copper
  • Outer Jacket Color: Dark gray w/white lettering
  • Outer Jacket: PVC
  • Shield:
    (A) 90% spiral 38 AWG tinned copper
    (B) aluminum foil/mylar 25% overlap rate

DIAMETERS:

  • Center Conductor: 0.018 inches, 0.474mm
  • Dielectric: 0.176 inches, 1.95mm
  • Individual Coax: 0.102 inches, 2.6mm
  • Outside Diameter: 0.244 inches, 6.2mm

ELECTRICAL:

  • Attenuation (dB/100 ft.):
    -0.5 dB @ 1MHz
    -1.2 dB @ 5 MHz
    -1.8 dB @ 10 MHz
    -4.4 dB @ 50 MHz
    -6.7 dB @ 100 MHz
  • Capacitance: 17.3pF per foot, 53.1pF per meter
  • DC Resistance: 45 Ohm per 1000ft, 148 Ohm per km
  • Impedance: 75 Ohm
  • Temperature: 68° to 167° fahrenheit, - 20° to 75° celsius
  • Velocity of Propogation: 76%

REGULATORY:

  • CSA: C(UL) CL2
  • UL: CL2
