Premier Mounts PBL-UMS
Universal Projector Mount


Our Price: $132.30
List Price: $189.00
You save 30%! (Low Price Guarantee)
In Stock

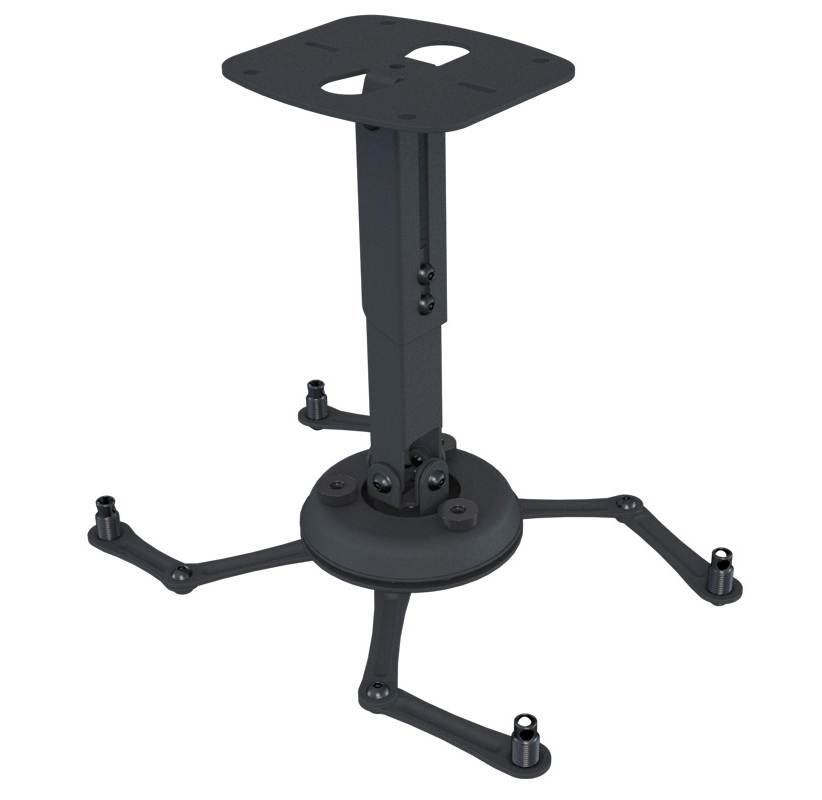

Premier Mounts' PBL-UMS Universal Projector Mount is an adjustable-height universal projector mount that fits most projectors weighing up to 25 lbs. (11.4 kg). The PBL-UMS offers flexible projector positioning with four patented dual-joint support arms (US Patent number 7,942,375) that can reach almost any mounting point.  It features an adjustable height extension channel and a versatile ceiling plate that can mount to traditional or vaulted ceilings.  The quick release connector allows the projector to be installed quickly and then easily released for maintenance, without re-alignment.

Premier Mounts PBL-UMS Features:

  • Four dual-joint support arms with Lock-It™ securityleveling barrels for greater protection
  • Flexible design allows both low-profile and extended height installations
  • Can be mounted vertically or horizontally to walls, vaulted or traditionalceilings
  • Mounting plate installs on a single stud or a false ceiling adapter
  • Adjustable height channel extends from 9.8" - 13.3"

Premier Mounts PBL-UMS Specifications:

  • Weight: 7.50 lbs (3.4 kg)
  • Weight Capacity per Mount: 25 lbs (11.4 kg)
  • Number of Mounts: 0
  • Height: 13.45" (342 mm)
  • Mounting Reach: 18.95" (481 mm)
  • Extension: 13.30" (338 mm)
  • Pitch: +20.00° / -20.00°
  • Roll: +20.00° / -20.00°
  • Yaw: +360.00°
  • Dimensions: 7.30" W x 5.00" H x 14.80" D (185 mm x 127 mm x376 mm)
