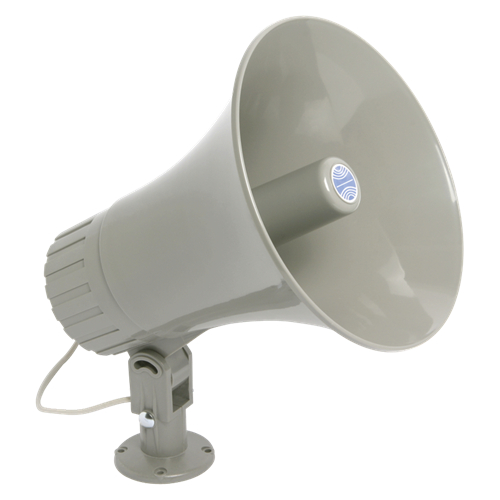

Atlas IED GA30T GA-30T

Perfectly suited for voice paging and music transmission.

Designed with double re-entrant horn construction to optimize speaker output for penetration of ambient sound levels, the GA-30T utility horn is perfect for voice paging and music transmission. It incorporates a 30-watt compression driver with a ceramic magnet and includes a 25/70.7-volt line transformer with a multi-position switch for selecting power taps. It is also equipped with wiring for an 8-ohm connection when a transformer is not required.

Atlas IED GA30T Applications:

Paging and Intercom Systems

Commercial Buildings

Distribution Centers

Recreation and Sports Facilities

Service/Shop Areas

Gas Stations

Transportation Terminals

Atlas IED GA30T Features:

• Constructed of high-impact plastic for long-term indoor and outdoor use
• Multi-function, re-entrant horn design provides efficient sound penetration and dispersion for paging, music, and intercom use
• Includes adjustable mounting bracket for vertical or horizontal positioning
• Dual voltage knob-adjustable impedance selection for 25/70.7V line connection

Atlas IED GA30T Specifications:

• Frequency Response: 500Hz – 3kHz
• Sensitivity: 103dB
• Power Taps: 4, 8, 15 & 30 Watts @ 70.7V
• Dispersion: 60°
• Length: 12” (30.4 cm)
• Height: 11” (27.9 cm)
• Diameter: 10” (25.4 cm)
• Weight: 3.2 lbs (1.5 kgs)
