Sennheiser MZC/H30-ME35 Installed Ceiling Hanger and Cable with Microphone Capsule

The MZC 30 is a versatile connecting cable (9 meter length) designed for use with ME 35 microphone capsule. The ultra thin (1 mm) cable is equipped with a balanced floating XLR-3M connector, enabling the microphone to be powered from 12 - 48V phantom power, and feaures a special coax socket for the microphone heads. The MZH 30 ceiling mount attaches to and positions the microphone capsule, allowing for unobtrusive placmement above a speaker or the audience.

The ME 35 is a pre-polarized condenser microphone head designed for conference, public address and studio applications.

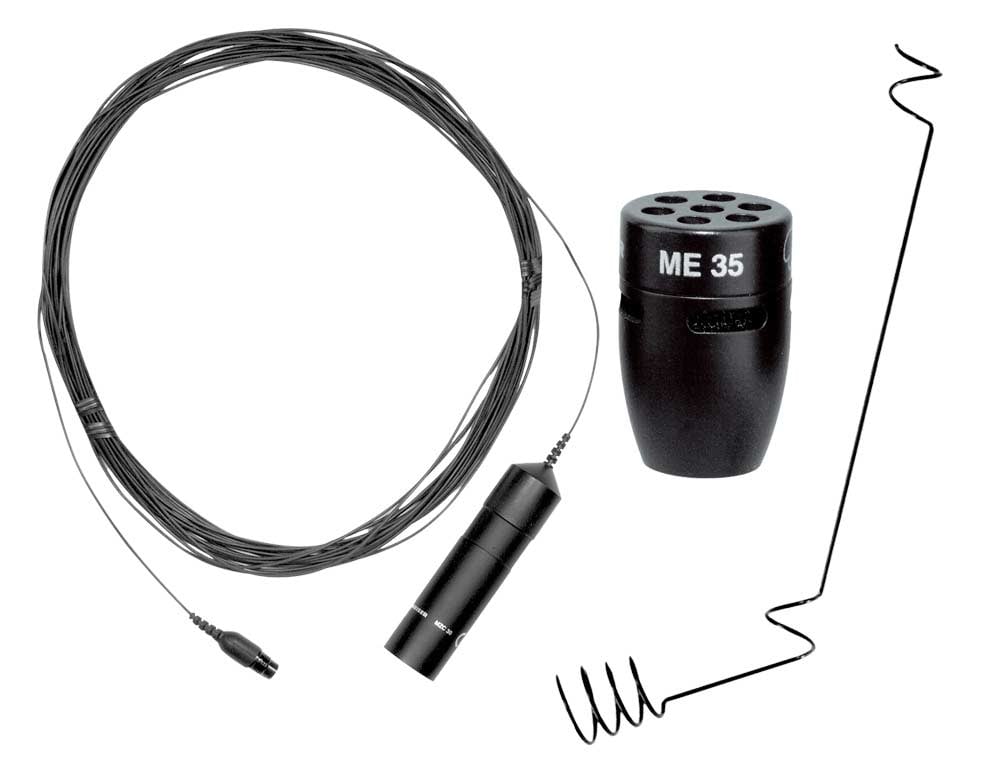

Includes

• ME35 Supercardioid Microphone Capsule
• MZC30 Cable
• MZH30 Ceiling Mount

Features

• MZC 30 and MZH 30 Cable and Ceiling Mount
  • Ultra thin cable (9 meter or 29.5 ft. length) with integrated cable spool
  • Tangle-free cable for ceiling hanging applications
  • Rugged cable for unobtrusive placement of ME 34, ME 35, ME 36 microphone capsules
  • MZH 30 for positioning of the microphone capsules in ceiling applications
• ME 35 Microphone Capsule
  • Super-cardioid pick-up pattern
  • Rugged metal housing with non-reflective coating
  • High sound quality
  • Low equivalent noise level

Specifications

• MZC 30 and MZH 30 Installed Ceiling Hanger and Cable
  • Connection: XLR 3
  • Phantom Powering: P 12 - P48 V
  • Coating: matte black
  • Diameter: 1 mm (0.04“)
  • Length: 9 m (29.52 ft.)
  • Weight (goosenecks): 70 g (22 oz.)
  • MZT 30: XLR3F connector
• ME 35 Condenser Microphone Head
  • Frequency response: 50 – 20000 Hz
  • Acoustic operating principle: pressure gradient transducer
  • Pick-up pattern: super-cardioid
  • Sensitivity: 10 mV/Pa
  • Electrical impedance: 50 Ω
  • Min. terminating impedance: 1 kΩ
  • Equivalent noise level: 37 dB (CCIR), 26 dB(A)
  • Power supply via MZH: P12 – P48
  • Current consumption microphone: 250 µA
  • Dimensions: 12 x 18 mm
  • Weight (without MZH): 9.5 g
  • Connector: special coax connector
