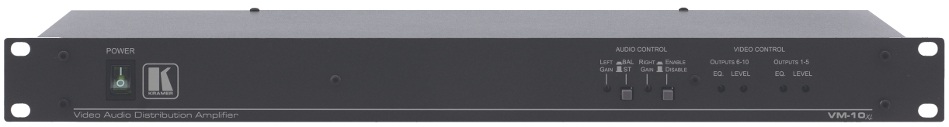

Kramer VM-10xl
1 x 10 Video Audio Distribution Amplifier

OUR PART #:  VM10XL

The Kramer VM-10xl is a state-of-the-art, broadcast quality video audio distribution amplifier. It has looping video and audio stereo inputs, splitting each to 10 outputs.
Learn More
Our Price: $488.00
List Price: $610.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-10xl
Qty:
In Stock

Similar Products

The Kramer VM-10xl is a state-of-the-art, broadcast quality video audio distribution amplifier. It has looping video and audio stereo inputs, splitting each to 10 outputs. The user may choose unbalanced stereo or balanced mono via a front panel switch. The output audio and video levels, as well as video cable equalization (EQ) may be adjusted via trimmers accessible from the front panel. The video outputs are divided into groups of 5 outputs, where each group may be individually trimmed for level and cable EQ, thereby achieving different compensations for different cable lengths.

The machine is an upgrade of the VM-10ARII, the industry workhorse, raising the bandwidth from 224 MHz to well over 360 MHz, thus ensuring total transparency for high frequency signals such as component video, RGB, HDTV, etc. Several VM-10xl units may be chained through the looping inputs. Output video signals are DC or AC coupled (user selectable) for maximum flexibility. The machine is dependable, rugged, and fits in one vertical space of a standard 19" rack.

Applications

  • Broadcast AV duplication studios, delivering undiminished quality duplicates.
  • Video audio showrooms for delivering an identical picture and sound to several monitors.
  • Video component distribution using several VM-10xl units.
  • CCTV and security applications.

Kramer VM-10xl Features:

  • High Bandwidth - 360MHz (-3dB).
  • Audio Controls.
  • Level (Gain) and EQ (Peaking) Controls.
  • Looping Input.
  • Selectable Input Signal Termination.
  • Video AC/DC Coupling Selection.
  • Standard 19” Rack Mount Size - 1U.

Kramer VM-10xl Specifications:

  • Inputs:  1 composite video with loop, 1Vpp/75ohm with termination switch on BNC connectors; 2 balanced stereo/mono audio with loop, 1Vpp/50kohm on RCA connectors.
  • Outputs:  10 composite video, 1Vpp/75ohm on BNC connectors; 10 balanced stereo/mono audio, 1Vpp/50ohm on RCA connectors.
  • Max. Output Level:  Video: 1.6Vpp; Audio: 26.5Vpp.
  • Bandwidth (-3dB):  Video: 360MHz, Audio: 100kHz.
  • Diff. Gain:  0.07%.
  • Diff. Phase:  0.05Deg.
  • K-Factor:  <0.05%.
  • S/N Ratio:  Video: 77dB, Audio: 87dB.
  • Controls:  Video level: (-1.2dB to +6dB), EQ. (0dB to +8.1dB); audio level: (0dB to +6dB); balanced/stereo selector switch and audio control enable switch.
  • Coupling: Video:  DC/AC; Audio: AC (input), DC (output).
  • Audio Thd + Noise:  0.023%.
  • AUDIO 2nd HARMONIC:  0.001%.
  • Power Consumption:  230V AC, 50/60Hz, (115V USA), 4.7VA.
  • Dimensions (WxDxH):  19" x 7" x 1U , rack mountable.
  • Weight:  4.6 lbs. (2.1kg) approx.
  • Included Accessories:  Power cord.
