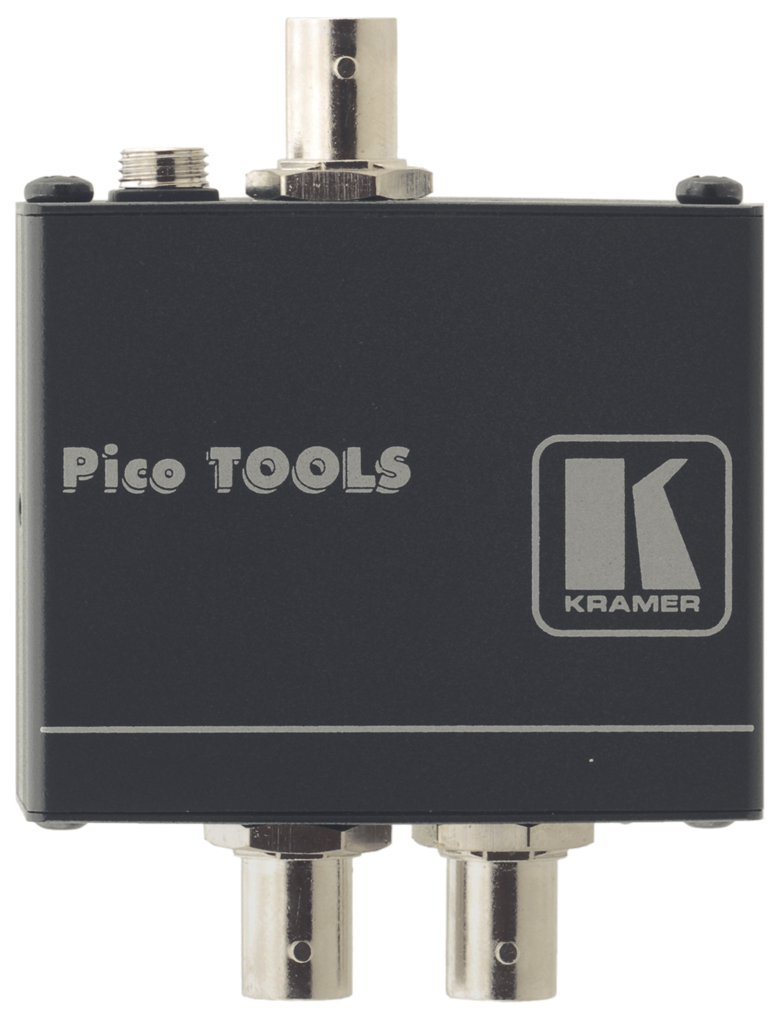

Kramer PT-102VN
1:2 Composite Video Distribution Amplifier


Our Price: $112.00
List Price: $140.00
You save 20%!
In Stock

Recommended Accessories

The Kramer PT-102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.

Kramer PT-102VN 1:2 Composite Video Distribution Amplifier Features:

  • High Bandwidth - 430MHz (-3dB).
  • Level (Gain) and EQ (Peaking) Controls.
  • Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter (sold separately).

Kramer PT-102VN 1:2 Composite Video Distribution Amplifier Specifications:

  • Input: 1 video, 1Vpp/75 ohms on a BNC connector
  • Outputs: 2 video, 1Vpp/75 ohms on BNC connectors
  • Max. Video Output: 2 Vpp
  • Video Bandwidth (-3dB): 430 MHz
  • Diff. Gain: 0.05%
  • Diff. Phase: 0.05 Deg.
  • K-Factor: 0.05%
  • S/N Ratio: 76.1dB
  • Control: Gain: -1.2 to +6 dB, EQ.: 0 to +7.5dB @ 50MHz., via trimmers accessible from front panel
  • Coupling: AC
  • Power Source: 12 VDC, 30 mA
  • Dimensions: 2.36" W x 2.56" D x 1" H
  • Weight: 0.31 lbs approx.
  • Accessories: Power Supply
6-Outlet 12VDC 600mA Universal Power SupplyKramer VA-50P 6-Outlet 12VDC 600mA Universal Power Supply

The Kramer VA-50P is a six outlet power supply designed to operate Kramer products which normally use an external 12VDC power transformer. This includes all units in the VM-50, VS-55, and VM-3 families, the Kramer TOOLS and Pico TOOLS ...
