TOA A-712 9-Channel Mixer and Amplifier, 120W

OUR PART #: A712 MFR #: A-712

Copied to clipboard

Equipped with 6 LINE / MIC selectable inputs, 2 LINE inputs and 1 MODULE input, the A-712 PA amplifier is designed to suit PA system applications such as announcements... ...Read more

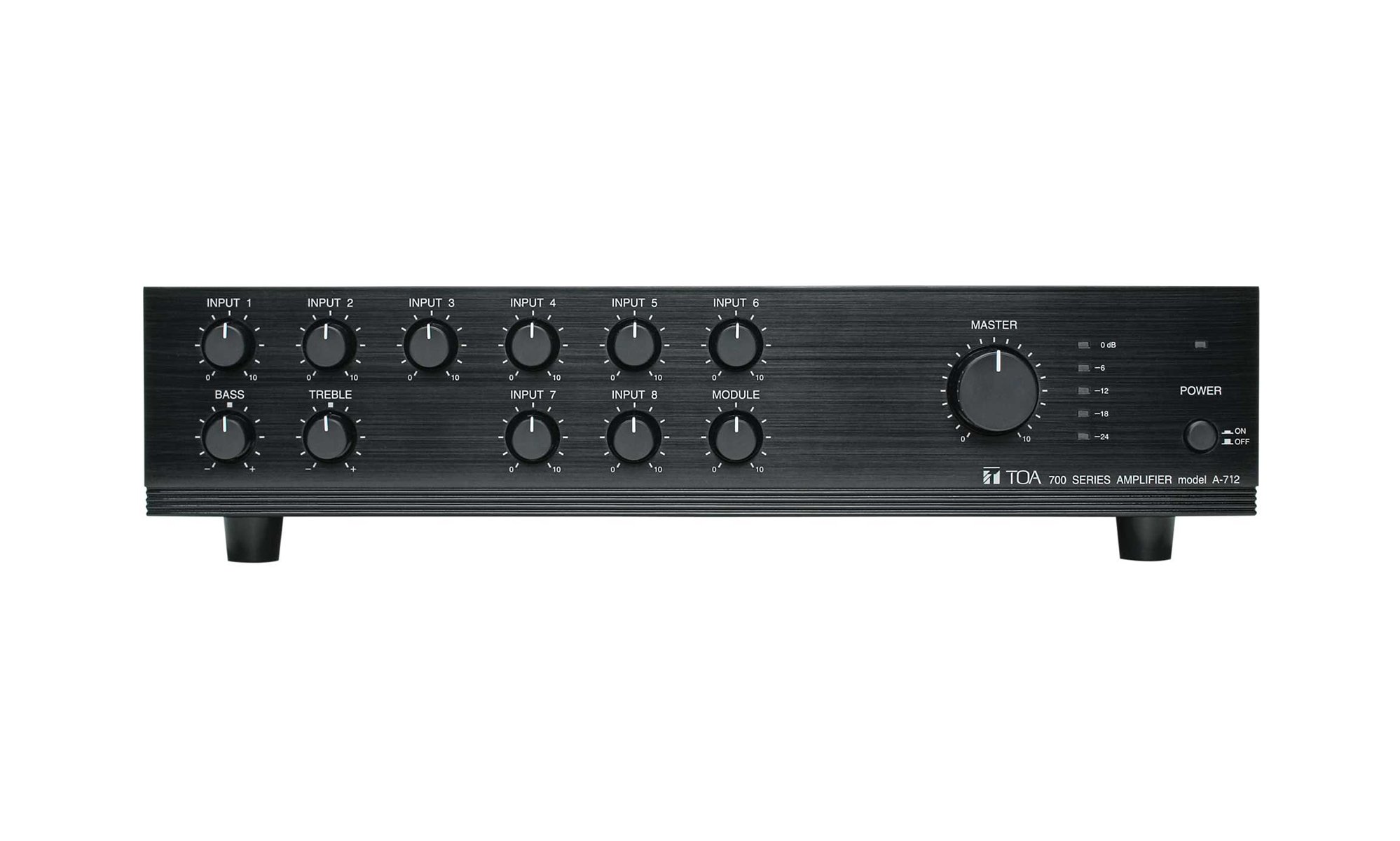

TOA A-712 9-Channel Mixer And Amplifier, 120W Image 1
TOA A-712 9-Channel Mixer And Amplifier, 120W Image 2
TOA A-712 9-Channel Mixer And Amplifier, 120W
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Equipped with 6 LINE / MIC selectable inputs, 2 LINE inputs and 1 MODULE input, the A-712 PA amplifier is designed to suit PA system applications such as announcements, BGM and broadcasting churches, large rooms and factories.

The 120 Watt A-712 Mixer / Amplifier is built with TOA's proven quality plus reliability—part of their 700 Series that brings versatile features and outstanding value for installed sound applications. Its features include 6 mic / line inputs, 2 auxiliary line inputs and a 900-Series module port. Each mic / line input includes a mic trim control and 23VDC phantom power. Speaker outputs consist of 70.7V, 25V and 4Ω. An auxiliary line output can be used for recording or connection to an external booster amplifier. An Auto-Mute function provides voice-activated priority override. You can assign inputs to activate or respond to the muting function with rear panel DIP switches. Muting can also be activated with an external switch-closure. Other features include channel and master volume controls, bass / treble, processor insert jacks and output level meter. Master volume and power on/off can also be controlled remotely. Short-circuit and thermal protection circuitry ensures extended operation. The 700 Series is UL and cUL listed with competitive pricing and 5-year warranty.

Applications

Boardrooms

Educational facilities

Houses of worship

Includes:

  • Accessory AC power cord (2m) x1
  • Removable terminal plug (3-pin) x6
  • Removable terminal plug (4-pin) x1
  • Removable terminal plug (6-pin) x1
  • Volume control cover x4

Features:

  • 9-channel integrated mixer/amplifier for paging and background / foreground music distribution
  • Wide frequency response, very low noise and distortion, and excellent output regulation
  • Rated power of: 120W
  • (6x) mic / line inputs with trim and phantom power
  • (2x) aux inputs for convenient connection of stereo sources

Specifications:

  • Power Source:120VAC, 60Hz
  • Rated Output: 120W
  • Power/Current Consumption: 285W (rated output), 110W (based on UL60065), under 400mA (when power switch is OFF)
  • Frequency Response: 50 - 20,000Hz (±3dB)
  • Distortion: Under 2% @ 1kHz, rated power
  • Input:
    • INPUT 1 - 6: -70 to -50dB, 600Ω (MIC) / -10dB, 600Ω (LINE)
    • INPUT 1: Transformer-balanced, removable terminal block (3-pin)
    • INPUT 2 - 6: Electronically-balanced, removable terminal block (3-pin)
    • INPUT 7 - 8 (LINE): -20dB, 10kΩ, unbalanced, RCA jack
    • MODULE: -20dB, 10kΩ
    • PWR AMP IN: 0dB, 10kΩ, unbalanced, RCA jack (An equalizer or other signal processor connectable between PREAMP OUT and PWR AMP IN terminals)
  • Output:
    • REC OUT: 0dB, 600Ω, unbalanced, RCA jack
    • PREAMP OUT: 0dB, 600Ω, unbalanced, RCA jack
    • SPEAKER OUT: 70V line (42Ω), 25V line (5.2Ω), and 4 - 16Ω, removable terminal block (4-pin)
  • Phantom Power: (+23VDC) ON or OFF for each INPUT 1 - 6 (MIC input) with switch setting
  • S / N Ratio (Band pass : 20 - 20,000Hz): Over 55dB (INPUT 1 - 6, mic trim volume: max., 600Ω terminated)
    • Over 70dB (INPUT 1 - 6, mic trim volume: min., 600Ω terminated)
    • Over 76dB (Master volume: max.)
    • Over 90dB (All input volume: min.)
  • Tone Control
    • Bass: ±10dB @ 100Hz
    • Treble: ±10dB @ 10kHz
  • Control:
    • Input REMOTE VOLUME: Removable terminal block
    • POWER REMOTE: No-voltage make contact input, open voltage: under 14VDC, short-circuit: under 0.5mA, removable terminal block
    • MUTE CONTROL: No-voltage make contact input, open voltage: under 17VDC, short-circuit: under 1.5mA, removable terminal block
  • Indicator: 5-point LED output level meter, Power indicator LED
  • Operating Temperature: -10℃ to +40℃
  • Finish:
    • Panel: ABS resin, black, hair line
    • Case: Steel plate, black
  • Dimensions: 420 (W) × 107.7 (H) × 351.5mm (D)
  • Weight: 12kgs

Notes:

The 700 Series Mic / Line Inputs have Removable Terminal Block (Phoenix-type) connectors with the following pin-out: H: Hot, C: Common, E: Earth.
