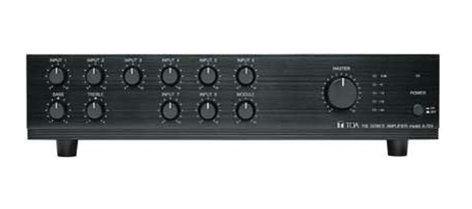

TOA A706
Mixer / Amplifier, 60W, A-706

OUR PART #  A706

Our Price: $540.49
List Price: $668.86
You save 19%! (Low Price Guarantee)
In Stock

Recommended Accessories

Features include six mic/line inputs, two auxiliary line inputs and a 900 Series module port. Speaker outputs consist of 70.7 V, 25 V and 4 ohm. An auxiliary line output can be used for recording or connection to an external booster amplifier. An Auto-Mute function provides voice-activated priority override and channel switching. Other features include channel and master volume controls, bass/treble, processor insert jacks and output level meter. Master volume and power on/off can also be controlled remotely. Short-circuit and thermal protection circuitry ensures extended operation.

A706 Features:

  • Nine Channel Integrated Mixer/Amplifiers for paging and background/foreground music distribution
  • Proven TOA Quality and Reliability with wide frequency response, very low noise and distortion, and excellent output regulation
  • Three Models: A-706 (60 W) A-712 (120 W) A-724 (240 W)
  • Six Mic/Line Inputs, balanced, with mic trim, 23 VDC phantom power and removable terminal block connector
  • Two Auxiliary Inputs, unbalanced, with dual-RCA jacks for convenient connection of stereo sources
  • Module Slot accepts 900 Series plug-in modules with additional features
  • Transformer-Isolation for Telephone Paging Applications (Input #1)
  • 25 V, 70.7 V and 4 Ohm Speaker Outputs with removable terminal block connector
  • Auto-Mute Priority Function assignable via external switches
        * Channels 1-3 and Module configurable as MuteSend
        * Channels1-8 and Module configurable as Mute Receive
  • Auto-Mute SENSE Control for adjusting mute activation threshold
  • External Mute Terminals for activating mute function with external switch-closure
  • Individual Channel and Master Volume Controls
  • Bass/Treble Tone Controls
  • Output Level Meter and Power Indicator
  • Remote Master Volume controlled with an external 10k ohm linear-taper potentiometer
  • Auxiliary Output for connecting an external amplifieror recording device
  • Pre-amp. Out / Power Amp. In Insert Jacks forconnecting external signal processors
  • Remote AC Turn-On for activating power with an external switch-closure
  • Turn-On Delay disconnects output during power-up
  • Over-current and Thermal Protection Circuitry prevents potential damage from overloads, short-circuit and overheating
  • Detachable IEC-type AC Power Cord
  • Volume Control Security Knobs Included (4)
  • Optional Rack-Mount Kit, model MB-25B (2 RU)
  • UL / cUL Listed
  • Five Year Warranty
Microphone Preamp ModuleTOA M21S Microphone Preamp Module

Microphone Preamplifier with Remote Volume ControlFor balanced, low impedance mics. Allows remote control of input signal using an external potentiometer. Controls/Functions:Gain ControlHigh and Low Cut FiltersRemote Volume ...

In Stock

Free Shipping Available

Our Price:$83.41List Price: $103.22You save 19%!

Switch-Selectable Tone Generator for TOA ampsTOA S04ST Switch-Selectable Tone Generator for TOA amps

Generates one of eight tones via switch-closure. Can be used for doorbell, paging, door/gate release, telephone night ringer, annunciator, class change or pre-announcement tone.Features and Specifications Controls/Functions: Gain ...

In Stock

Free Shipping Available

Our Price:$81.79List Price: $101.21You save 19%!

Out Module TOA T-01ST Out Module

For transformer-isolated output of mixing bus signal to feed other mixers, amps and tape recorders. (Functions only in A-900MK2, M-900MK2, W-900A Series, 700 Series and BG-M Series; not usable in P900MK2 Series) ...

In Stock

Free Shipping Available

Our Price:$80.60List Price: $99.74You save 19%!

Module for Jukebox, 2 input AGC, RCATOA U14R Module for Jukebox, 2 input AGC, RCA

Dual Input Priority with AGC.Features: Designed for applications with a business music source and an on-premises music source, such as a CD jukebox Two modules in one Two line inputs: Jukebox and BGM Automute function (Jukebox ...

In Stock

Free Shipping Available

Our Price:$80.60List Price: $99.74You save 19%!

Female XLR Microphone Input Module for 900 SeriesTOA M01F Female XLR Microphone Input Module for 900 Series

The M01F is a female XLR microphone input module for balanced, low impedance mics. Features and Specifications: Controls/Functions: Gain Control High and Low Cut Filters Phantom Power Performance Input: 600 tbInput Sensitivity: -70 ~ ...

In Stock

Free Shipping Available

Our Price:$73.52List Price: $90.98You save 19%!

Female 1/4" Microphone Preamp Module for 900 SeriesTOA M01P Female 1/4" Microphone Preamp Module for 900 Series

The M01P is a female 1/4" microphone preamp module for balanced, low impedance mics.Features: Controls/Functions: Gain Control High and Low Cut Filters Phantom Power Performance Input: 600 tbInput Sensitivity: -70 ~ -50 dBuGain ...

In Stock

Our Price:$66.44List Price: $82.22You save 19%!

600 Ohm Balanced Line Input Module, Screw TerminalTOA L01S 600 Ohm Balanced Line Input Module, Screw Terminal

For applications requiring 600 ohm line-matching. Connector type is screw terminal. Performance Input: 600 tb Input Sensitivity: -16 dBu Gain (Adjustable): -2 dB (fixed) Maximum Input:+20 dB Physical Connector:  ...

In Stock

Our Price:$52.31List Price: $64.73You save 19%!

900 series Bridging Module, Screw Terminal Balanced Line InputTOA B01ST 900 series Bridging Module, Screw Terminal Balanced Line Input

For balanced or unbalanced, line level equipment such as AM/FM tuners, tape decks and CD players. Transformer isolation minimizes ground loop problems when connecting remote equipment.Specifications: Performance Input: 10k tb Input ...

In Stock

Our Price:$51.28List Price: $63.46You save 19%!

Unbalanced Line Input Module with High/Low Cut FiltersTOA U03R Unbalanced Line Input Module with High/Low Cut Filters

For unbalanced, line level equipment such as AM/FM tuners, tape decks and CD players. Choose from two connector types: dual RCA jacks with passive summing or removable terminal block.

In Stock

Our Price:$50.89List Price: $62.98You save 19%!

Terminal Block Module TOA U03S Terminal Block Module

For unbalanced, line level equipment such as AM/FM tuners, tape decks and CD players. Choose from two connector types: dual RCA jacks with passive summing or removable terminal block.Features: Controls/Functions: Gain Control; High and ...

In Stock

Our Price:$50.89List Price: $62.98You save 19%!

00 Series Module with Female RCA Unbalanced Line InputTOA U01R 00 Series Module with Female RCA Unbalanced Line Input

Aux-Preamp module for the 900 series with female RCA. For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players.Specifications: Controls/Functions: Gain Control Performance Input: 220 k ub Input ...

In Stock

Our Price:$39.57List Price: $48.97You save 19%!

Aux-Preamp 900 Series Module, Screw TerminalsTOA U01ST Aux-Preamp 900 Series Module, Screw Terminals

Aux-Preamp module for the 900 series with removeable terminal block (screw terminals). For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players.Specifications: Controls/Functions: Gain Control ...

In Stock

Our Price:$39.57List Price: $48.97You save 19%!

Rack Mount Kit for 900-Series AmpsTOA MB25B Rack Mount Kit for 900-Series Amps

Rack-mount kit for use with TOA 900-Series modular mixer / amplifiers.

In Stock

Our Price:$28.01List Price: $34.67You save 19%!

Mic Preamp with Compressor, Female XLRTOA M61F Mic Preamp with Compressor, Female XLR

For balanced, low impedance mics. Compressor function prevents overload and distortion. Choose from two connector types: female XLR or removable terminal block. Controls/Functions:High and Low Cut FiltersCompressor SensitivityPhantom ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$97.55List Price: $120.71You save 19%!

Aux-Input / Bal-Output (Music-on-hold)TOA T02S Aux-Input / Bal-Output (Music-on-hold)

For unbalanced, line level equipment. Transformer-isolated output of module’s input signal for feeding remote equipment such as mixers, amps, tape recorders and telephone system music-on-hold inputs.Specifications: Controls / Functions: ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$96.15List Price: $118.98You save 19%!

Mic Preamp, Female XLRTOA M51F Mic Preamp, Female XLR

For balanced, low impedance mics. Gate function keeps module muted until input signal exceeds threshold. Choose from two connector types: female XLR or removable terminal block. Controls/Functions:Gain ControlLow Cut FilterVoice ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$90.49List Price: $111.99You save 19%!

Processor Module 900 Series TOA E03R Processor Module 900 Series

Processor module for F-122CU speaker. Connects between pre-am output and power amp output. Includes dual RCA cable.Specifications: Input Impedance 100k ohms, unbalanced Output Impedance 1k ohms, unbalanced Sensitivity +2.2 dBu Output ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$86.24List Price: $106.72You save 19%!

Processor Module 900 Series TOA E04R Processor Module 900 Series

Processor module for F-122CU speaker. Connects between pre-am output and power amp output. Includes dual RCA cable.Specifications: Input Impedance 100k ohms, unbalanced Output Impedance 1k ohms, unbalanced Sensitivity +2.2 dBu Output ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$86.24List Price: $106.72You save 19%!

Unbalanced Line Input w/ CompressorTOA U61S Unbalanced Line Input w/ Compressor

For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players. Compressor function prevents overload and distortion. Also configurable as master compressor.Specifications: Controls / Functions:Gain ControlCompresso ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$83.41List Price: $103.22You save 19%!

900 Series Bridging Transformer Module, Screw Terminals, with Volume ControlTOA B21S 900 Series Bridging Transformer Module, Screw Terminals, with Volume Control

900 series module with screw terminals and remote volume control. For balanced or unbalanced, line level equipment such as AM/FM tuners, tape decks and CD players. Transformer isolation minimizes ground loop problems when connecting remote ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$79.03List Price: $97.80You save 19%!

Male XLR Microphone Input Module for 900 SeriesTOA M01M Male XLR Microphone Input Module for 900 Series

The M01M is a male XLR microphone input module for balanced, low impedance mics.Features and Specifications: Controls/Functions: Gain Control High and Low Cut Filters Phantom Power Performance Input: 600 tbInput Sensitivity: -70 ~ ...

Usually ships in 7-14 business days.

Free Shipping Available

Our Price:$73.52List Price: $90.98You save 19%!

Line Matching TransformerTOA L01F Line Matching Transformer

For applications requiring 600 ohm line-matching. Connector type: female XLR.Specifications:Performance Input: 600 tbInput Sensitivity: -16 dBuGain (Adjustable): -2 dB (fixed)Maximum Input:+20 dB

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$67.87List Price: $83.99You save 19%!

900 series Bridging Module, Female XLR Balanced Line InputTOA B01F 900 series Bridging Module, Female XLR Balanced Line Input

Module for 900 Sereis with female XLR. For balanced or unbalanced, line level equipment such as AM/FM tuners, tape decks and CD players. Transformer isolation minimizes ground loop problems when connecting remote equipment.Specifications: ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$66.53List Price: $82.34You save 19%!

Unbalanced Line InputTOA U21S Unbalanced Line Input

For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players. Allows remote control of input signal using an external potentiometer. Also configurable as master remote volume control. Specifications: Controls / Fu ...

Usually ships in 7-14 business days.

Our Price:$66.44List Price: $82.22You save 19%!

Remote Master Volume Control Module (VCA)TOA V01S Remote Master Volume Control Module (VCA)

Features: Voltage controlled amplifier (VCA) for applications requiring preset remote master volume control Line input and output connect to host amplifier's Preamp output and Power Amp input 24 VDC output and Control input ...

Usually ships in 7-14 business days.

Our Price:$65.04List Price: $80.49You save 19%!

Module, 1kHz Sine WaveTOA S-01ST Module, 1kHz Sine Wave

Generates 1 kHz sine wave tone via switch-closure. Ideal as a test tone for the audio system.  Use with TOA 900 series amps. Controls/Functions:          o Level ...

Usually ships in 7-14 business days.

Our Price:$63.76List Price: $78.90You save 19%!

Siren Module TOA S-02ST Siren Module

Generates buzzer and yelp tones via switch-closure. Controls/Functions:          o Level Control          o Buzzer/Yelp Performance Input: ...

Usually ships in 7-14 business days.

Our Price:$63.76List Price: $78.90You save 19%!

900 Series Module with Female XLR Unbalanced Line InputTOA U01F 900 Series Module with Female XLR Unbalanced Line Input

Aux-Preamp module for the 900 series with female XLR. For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players.Specifications: Controls/Functions: Gain Control Performance Input: 220 k ub Input ...

Usually ships in 7-14 business days.

Our Price:$49.49List Price: $61.25You save 19%!

Mic Module/HiZ UnbalancedTOA M03P Mic Module/HiZ Unbalanced

For unbalanced, high-impedance mics.Specifications: Controls / Functions:Gain ControlHigh and Low Cut FiltersPerformance Input: 50 k ubInput Sensitivity: -60 ~ -40 dBuGain (Adjustable): 22 ~ 42 dBMaximum Input: -8 dBSignal to Noise (S/N): ...

Usually ships in 7-14 business days.

Our Price:$42.43List Price: $52.50You save 19%!

900 Series Module with Female 1/4" Unbalanced Line InputTOA U01P 900 Series Module with Female 1/4" Unbalanced Line Input

Aux-Preamp module for the 900 series with female 1/4". For unbalanced, line level equipment such as AM/FM tuners, tape decks, and CD players.Specifications: Controls/Functions: Gain Control Performance Input: 220 k ub Input ...

Usually ships in 7-14 business days.

Our Price:$42.43List Price: $52.50You save 19%!

Volume CoverTOA YA920 Volume Cover

Volume Control Cover for 900MK2 Series, Black.

Usually ships in 7-14 business days.

Our Price:$2.75List Price: $3.40You save 19%!
