Telex ACS-101
Antenna Splitter 7190001


Call for price! Not available online.
List Price: $8,198.00

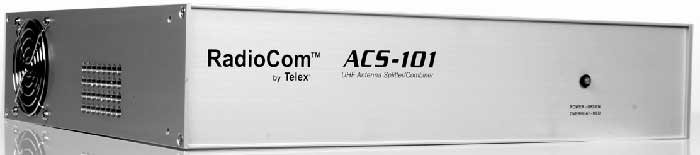

The ACS-101 (Antenna Combiner-Splitter 10-to-1) is an amplified and filtered broadband splitter-combiner. It allows up to ten UHF base stations to use only one transmit and one receive antenna. The antenna combiner section contains innovative hybrid coupling, amplifying and matching technology to combine ten transmitters to one output with very low intermod distortion. The antenna splitter section has broadband input filtering and amplification to maintain signal levels through the splitters. High output isolation between ports is also achieved. The industrial strength power supply of the ACS-101 supplies voltage and current to two outputs on the product. Each output can supply up to 5 amps at 12 VDC.


  • 115 VAC or 230 VAC Operation
  • High-Quality TNC Connectors Ensure Consistent Impedance Across the Entire Frequency Range
  • Ideal for Use with BTR-1, RKP-4B, BTR-500, BTR-600, & BTR-700 Wireless Intercom Systems
  • Rackmount Brackets Included for 19" (482.6 mm) Rack
  • Standard IEC 320 Power Input Connector
  • Two Power Outputs to Supply up to Ten Transceivers


  • Overall
    Antenna Connectors: Standard TNC Receptacles
    AC Input Power:100-120 VAC, 60 Hz, 6A max
    AC Input Fuse: 10 A, 250 V, 3AG
    DC OutputPower: 12 VDC, 5 A for each output
    DC Output Jacks: Two, 5.5mm x 2.1 mmJacks
    DC Output Fuses: 5 A, 250 V, 5mm x 20 mm
    Size: H: 3½" (88.9 mm) xW: 16¾" (426 mm) x D: 14.63" (372 mm)
    Weight: 10 lbs., 4 oz., (4.65 kg)
  • Antenna Splitter
    Frequency Range: 614-746 MHz
    Output IP3: Greaterthan 30 dBm
    Net Gain: 0 dB Typical
    Noise Figure: Less than 4.5dB
    Minimum Isolation: 20 dB between adjacent ports. Greater than 20 dB between non-adjacent ports
  • Antenna Combiner
    Frequency Range: 470 - 608 MHz
    Net Gain: 0 dB(Maximum)
    Noise Figure: 10 dB Typical
    Output IP3: -55 dBc @ +17 dBm input on each transmitter
Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
