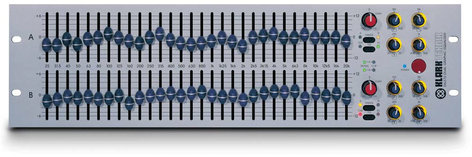

Klark Teknik DN370
Dual Channel 1/3 Octave Graphic Equalizer

OUR PART #:  DN370

The Klark Teknik DN370 is a dual-channel 1/3 octave (30-band) rackmount graphic equalizer that is designed for the discerning professional who desires uncompromising design.
Learn More
Our Price: $699.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Klark Teknik DN370
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Klark Teknik DN370 is a dual-channel 1/3 octave (30-band) rackmount graphic equalizer that is designed for the discerning professional who desires uncompromising design. The most important design decision for the DN370 was determining the equalizer response. Proportional-Q equalization, as used on previous Klark Teknik analog graphic equalizers, offers some key advantages over the more numerous Symmetrical-Q equalizers on the market, namely at low amounts of cut or boost the width of the filter is relatively broad and becomes narrower as the amount of boost or cut is increased, giving a more 'focused' response. This differs from a Symmetrical-Q response, which boosts or cuts an increasingly wide band of frequencies, as more of the frequency spectrum is lost when using Symmetrical-Q.

The choice of passive components is critical to ensuring circuit stability and performance. Premium components were chosen to eliminate the non-linear characteristics found in other designs, and to achieve the sonic purity for which Klark Teknik is renowned. Whilst retaining its traditional values, Klark Teknik uses state of the art PCB layout and manufacturing techniques, combined with the use of the latest surface mount components to produce the DN370. These new techniques have made it possible to fit the filter circuits to rear of the fader PCB, with each filter circuit fitting within the footprint of its associated fader. This minimizes the length of connections from each fader to its filter circuit, reducing susceptibility to RFI to a minimum and maximizes stability.

The DN370 has electronically-balanced input and output circuits to preserve the highest signal integrity. The inputs have excellent common-mode rejection and the outputs have high-drive capability to cope with long cable runs. Although equalizers are more generally used on console inserts, the DN370 is fully capable of being used in-line with cables running the long distances between the Front Of House mix position, the main stage and the delay towers in festival PA systems. Transformer balancing is available as an additional option on both the inputs and outputs.

Klark Teknik DN370 Features:

  • Long-throw 45mm oil-damped faders with dust cover for increased accuracy and resolution.
  • Proportional-Q filters provide optimum control without undesirable audio artifacts.
  • Gain control with +6dB/-infinity range and center detent at unity gain. Allows effective muting of channel in emergencies.
  • Range switch selects ±6dB or ±12dB operation for the faders, with LED indication.
  • Channel bypass switch with LED indication:  The unit also provides automatic relay bypass in the event of power failure.
  • Sweepable high-pass filter with 20 Hz to 500 Hz range:  Sets the lower frequency limit of the system. The control incorporates a push switch to select the filter in and out, with an illuminated ring for “at a glance” status indication. Invaluable for smooth rejection of unwanted subsonic and low frequencies, particularly relevant with modern, compact wedge monitors.
  • Sweepable low-pass filter with 2kHz to 20kHz range:  Sets the upper frequency limit of the system. The control incorporates a push switch to select the filter in and out, with an illuminated ring for “at a glance” status indication. Provides optimum bandwidth control for vocal monitors and IEM systems.
  • Two sweepable notch filters per channel, with overlapping frequency ranges of 20 Hz to 2 kHz and 200 Hz to 20 kHz. These allow precise removal of problem frequencies with minimal effect on the rest of the program material, and fast control of “between fader” frequencies.This gives precise control of room and loudspeaker resonance/feedback nodes with minimum loss of energy – even between ISO centers.
  • The controls each incorporate a push switch to select the filter in and out, with an illuminated ring for “at a glance” status indication.
  • Bypass switch with status LEDs for quick comparison of applied EQ.
  • Power switch, fully recessed in the “on” position to avoid accidental operation.
  • Signal present LEDs show the presence of audio signals above –40dBu.
  • Multi point clip monitoring. Clip warning LEDs illuminate when the level exceeds +20dBu (2dB below the onset of clipping) to assist in optimum system gain setting.
  • Electronically balanced inputs and outputs (transformer balancing is available as an option). Connections are provided on both XLRs (pin 2 hot) and Phoenix-type
    strip connectors for fixed installation.
  • IEC mains inlet. The unit automatically adjusts for operation on all voltages from 100 to 240V AC.
  • 3-year KT warranty for peace of mind.
  • Rugged, roadworthy steel chassis.

Klark Teknik DN370 Specifications:

  • Inputs:  Two
    • Type:  Electronically balanced (pin 2 hot)
  • Impedance:  20k Ohms
  • Maximum Input Level:  +22dBu
  • Outputs:  Two
    • Type:  Electronically balanced (pin 2 hot)
  • Minimum Load Impedance:  600 Ohms
  • Source Impedance:  < 60 Ohms
  • Maximum Output Level:  +22dBu into > 2k Ohms
  • Frequency Response:  ±0.5 dBu 20 Hz - 20 kHz relative to signal at 1 kHz
  • EQ Out:  ±0.5 dBu
  • EQ In (flat):  ±0.5 dBu
  • Distortion (THD+N):  < 0.003% @ 1kHz, +4 dBu
  • Dynamic Range:  > 114dB (20 Hz - 20 kHz unweighted, +/-12dB range)
  • Overload Indicator:  +20 dBu
  • Gain:  -inf. to +6dBu
  • Equalisation:  30 Bands
  • Center Frequencies:  To BS EN ISO 266:1997 25 Hz - 20 kHz, 1/3 octave
  • Tolerance:  ±5%
  • Maximum Boost/Cut:  +/-12dB, +/-6dB
  • High Pass Filter Slope:  12 dB/octave
  • Low Pass Filter Slope:  12 dB/octave
  • Notch Filter Attenuation:  > 17dB, Q = 32
  • Terminations:
    • Audio:  3-pin XLR and 6-pin Phoenix
    • Power:  3-pin IEC
  • Power Requirements:
    • Voltage:  100 - 240VAC
    • Consumption:  < 60W
  • Dimensions:
    • Height:  5.25 inch (133mm) (3U High)
    • Width:  19 inch (482mm)
    • Depth: 8 inch  (205mm)
  • Weight:
    • Net:  5.8 kg
    • Shipping:  7.0 kg
