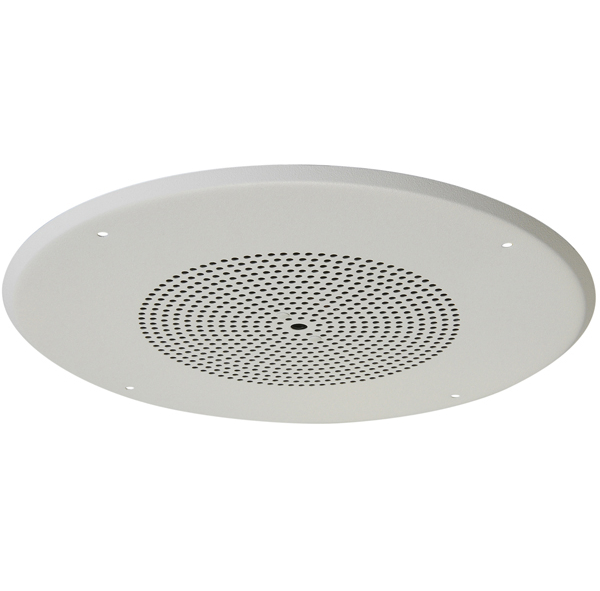

Quam C10X/B70/WS/VC
8" Loudspeaker w/ 70V Transformer, Volume Control, & Stud Mount Baffle

OUR PART #:  C10X/B70/WS/VC

The Quam C10X/xx/ Wx/x is a complete loudspeaker assembly, with 8” frame, 20W dual-cone loudspeaker, steel baffle as specified; transformer and volume control as specified.
Learn More
Our Price: $34.45
List Price: $46.86
You save 26%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Quam C10X/B70/WS/VC
Qty:
Similar Products

The Quam C10X/xx/ Wx/x is a complete loudspeaker assembly, with 8” frame, 20W dual-cone loudspeaker, steel baffle as specified; transformer and volume control as specified. Finish: Baffle, white baked epoxy hybrid, Loudspeaker, black baked epoxy hybrid.

Loudspeaker Mounting: Stud-Mount Baffle

Transformer: 25V/70.7V, 5W

Intended Use
All variants: Downward facing, ceiling mounted, Interior environment

Program Material
Signal tones, voice and music

Quam C10X/B70/WS/VC Specifications:

  • Speaker Size: 8” frame
  • Average Sensitivity: 97 dB-SPL, 1W/ 1M
  • Loudspeaker Power Rating: 20W-RMS, EIA 426A Standard
  • Calculated Output: 104 dB-SPL, 4W/ 1M
  • Frequency Response, Nominal: 60Hz - 17kHz
  • Coverage Angle: 90° Included Angle, -6 dB / 2 kHz, Half space
8" Backbox for Speaker Installation, Round
Quam ERD8 8" Backbox for Speaker Installation, Round
The Quam ERD-8 is a round, steel loudpseaker back box. A circular, molded expanded polystyrene damping pad is fitted to the inside top of the enclosure. Four welded hanger straps. UL listed  (UUMW) Finish: white baked epoxy ...
17.90 18.28

In Stock
Suspended Ceiling T-bar Support Bridge for 8" Speakers
Quam SSB2 Suspended Ceiling T-bar Support Bridge for 8" Speakers
The Quam SSB-2 speaker support bridges are universal loudspeaker-baffle mounting devices that eliminate tile sag caused by the weight of the installation on suspended ceiling, markedly reduce the required installation time and eliminate ...
9.90 10.10

In Stock
Bridge Support for 8" Baffle
Quam SSB3 Bridge Support for 8" Baffle
Quam SSB3 Features: “Load Bearing” device designed to eliminate ceilingtile or drywall sagRust-resistant metal eliminates hazards of combustion and toxic fume release Will accommodate ERD8 and ERD8U backboxes Designed to reduce ...
7.90 8.06

In Stock
8" Loudspeaker w/ 70V Transformer
Quam 8C10PAX/TBL70 8" Loudspeaker w/ 70V Transformer
This loudspeaker provides excellent performance and value for commercial background music, foreground music and distributed public address applications. It comes factory-assembled with a 70-volt transformer (TBL70).Features: Metal parts ...
20.78 26.50 Save up to 36% when you order by quantity!
Buy 12 @ $19.48 ea.
Buy 24 @ $18.18 ea.
Buy 36 @ $16.89 ea.

Usually ships in 7-14 business days.
Need it sooner? Call us!
Volume Control Screw/Knob
Quam VC Volume Control Screw/Knob
Quam's VC is a universal volume control screw/knob.
9.91 11.90 17

Usually ships in 7-14 business days.
Need it sooner? Call us!
