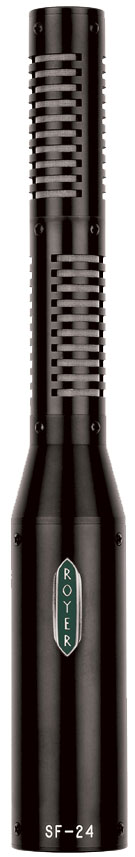

Royer Labs SF24
Active Stereo Ribbon Mic

OUR PART #  SF24

Our Price: $4,295.00
List Price: $4,495.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The SF-24 stereo ribbon microphone is a phantom powered version of our popular SF-12 stereo ribbon microphone, combining the SF-12's high quality audio performance, outstanding stereo separation and imaging with our exclusive active electronics system for ribbon microphones. The SF-24's output of -38 dB is a full 14 dB more sensitive than our non-powered SF-12, putting its sensitivity on par with that of phantom powered condenser microphones. The unique electronics and custom designed FET's used in the SF-24 allow for ultra-quiet operation, with self-noise of lower than 18 dB.

Like an SF-12, the SR-24 is actually two matched ribbon microphones placed one above the other, each aimed 45 degrees from center in the classic Blumlein configuration. The magnet/polepiece structure of each ribbon transducer allows a wide, uniform frequency range with no substantial peaks or dips, and the two 1.8-micron ribbons produce superb transient response. Frequency response is excellent regardless of the angle of sound striking the ribbons and off-axis coloration is negligible. The SF-24's extension cable comes with a Y adapter that splits into separate 3-pin male XLR connectors labeled "Upper" and "Lower" for the upper and lower capsules of the microphone (when held vertically).

Royer's Active Series ribbon mics (SF-24 and R-122) are as sensitive as phantom powered condenser microphones, allowing you to use almost any mic preamplifier or board pre (even those of nominal characteristics). Conventional ribbon microphones average 15 to 20 dB lower sensitivity than condenser mics, necessitating the use of high-quality, high-gain microphone preamplifiers for recording softer sound sources like acoustic instruments, vocals and room ambiance. The SF-24 contains two fully balanced, discrete head amplifier systems utilizing ultra-low noise FET's, each delivering a sensitivity of -38 dB. This lets you mate an SF-24 to any preamplifier with average gain characteristics. Even with quiet sound sources, you'll have enough gain to drive any recording medium.

The electronics in the SF-24 provide a perfect load to the ribbon elements at all times, allowing the microphone to deliver 100% of its full sonic potential regardless of the input characteristics of the following mic-pre. Due to its low-impedance output, SF-24's can also be used on extremely long cable runs with minimal signal loss. A good impedance match is critical to ribbon microphones. Impedance mis-matching loads a ribbon improperly, resulting in loss of low end, diminished body, lowered sensitivity and an overall compromised performance. With our Active Series ribbon mics, the ribbon element lives in a perfect world. It sees an optimum impedance match at all times regardless of the following equipment, so its performance will never be compromised by the effects of improper loading. In addition, the ribbon element cannot be damaged by phantom power, electrical glitches or miswired cables.

50 ft. Extension Cable for SF-12, SF-24 MicsRoyer Labs EXC50 50 ft. Extension Cable for SF-12, SF-24 Mics

50 foot extension cable for the SF12 and SF24 stereo microphones.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping AvailableSpecial Order Item

Our Price:$150.00

Shotgun Microphone Windscreen, 5.25"WindTech SG-200 Shotgun Microphone Windscreen, 5.25"

Since 1976, WindTech has manufactured the highest quality American made microphone windscreens on the market. They are available in  25  brilliant colors, and a wide variety of shapes and sizes to fit most popular microphones. ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$27.99List Price: $37.50You save 25%!

Royer Labs SF24
Active Stereo Ribbon Mic

OUR PART #  SF24

Product Information:

The SF-24 stereo ribbon microphone is a phantom powered version of our popular SF-12 stereo ribbon microphone, combining the SF-12's high quality audio performance, outstanding stereo separation and imaging with our exclusive active electronics system for ribbon microphones. The SF-24's output of -38 dB is a full 14 dB more sensitive than our non-powered SF-12, putting its sensitivity on par with that of phantom powered condenser microphones. The unique electronics and custom designed FET's used in the SF-24 allow for ultra-quiet operation, with self-noise of lower than 18 dB.

Like an SF-12, the SR-24 is actually two matched ribbon microphones placed one above the other, each aimed 45 degrees from center in the classic Blumlein configuration. The magnet/polepiece structure of each ribbon transducer allows a wide, uniform frequency range with no substantial peaks or dips, and the two 1.8-micron ribbons produce superb transient response. Frequency response is excellent regardless of the angle of sound striking the ribbons and off-axis coloration is negligible. The SF-24's extension cable comes with a Y adapter that splits into separate 3-pin male XLR connectors labeled "Upper" and "Lower" for the upper and lower capsules of the microphone (when held vertically).

Royer's Active Series ribbon mics (SF-24 and R-122) are as sensitive as phantom powered condenser microphones, allowing you to use almost any mic preamplifier or board pre (even those of nominal characteristics). Conventional ribbon microphones average 15 to 20 dB lower sensitivity than condenser mics, necessitating the use of high-quality, high-gain microphone preamplifiers for recording softer sound sources like acoustic instruments, vocals and room ambiance. The SF-24 contains two fully balanced, discrete head amplifier systems utilizing ultra-low noise FET's, each delivering a sensitivity of -38 dB. This lets you mate an SF-24 to any preamplifier with average gain characteristics. Even with quiet sound sources, you'll have enough gain to drive any recording medium.

The electronics in the SF-24 provide a perfect load to the ribbon elements at all times, allowing the microphone to deliver 100% of its full sonic potential regardless of the input characteristics of the following mic-pre. Due to its low-impedance output, SF-24's can also be used on extremely long cable runs with minimal signal loss. A good impedance match is critical to ribbon microphones. Impedance mis-matching loads a ribbon improperly, resulting in loss of low end, diminished body, lowered sensitivity and an overall compromised performance. With our Active Series ribbon mics, the ribbon element lives in a perfect world. It sees an optimum impedance match at all times regardless of the following equipment, so its performance will never be compromised by the effects of improper loading. In addition, the ribbon element cannot be damaged by phantom power, electrical glitches or miswired cables.
