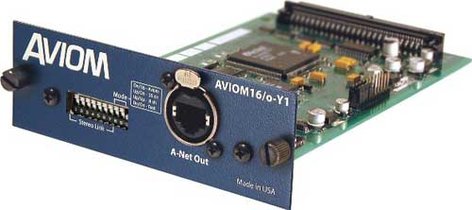

Aviom 16/0-Y1
Output Card, A-Net for Yamaha Digital Mixers

OUR PART #:  16/0-Y1

The Y1 card is a digital input module that allows users of Yamaha digital mixers to add the power of Aviom’s A-Net™ protocol to their existing systems...
Learn More
Our Price: $845.00
List Price: $926.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Aviom 16/0-Y1
Qty:
In Stock

Similar Products

The Y1 card is a digital input module that allows users of Yamaha digital mixers to add the power of Aviom’s A-Netâ„¢ protocol to their existing systems, distributing audio via inexpensive Cat-5e cable to the A-16II Personal Mixer**.  No Aviom analog input module is required when using a Y1 card with a Yamaha digital console.

The Y1 card fits into any available expansion slot in the rear of Yamaha’s digital consoles, including:

  • 01V96
  • 02R96
  • DM1000
  • DM2000
  • PM5D
  • PM1D (8-channel mode only)
  • M7CL

The Y1 card is also compatible with the Yamaha Digital Mix Engine products (DME64N and DME24N) which are used to expand the capabilities of the Yamaha digital mixer products.

Configuration of an Aviom monitoring system can be done digitally from the Yamaha console’s user interface. Rear-panel DIP switches are provided for stereo link configuration of each channel pair. Mode switches on the Y1 allow the use of the A-Net card with Yamaha digital mixers that support only 8-channel expansion cards (the PM1D is one such mixer).

The Y1 card is also compatible with the A-16R Personal Mixer, the AN-16/o Output Module, and the A-16D and A-16D Pro A-Net Distributors.

As with all Aviom A-Net compatible products, Cat-5e cable lengths of up to 500 feet (150 meters) are possible between devices.

Features

  • Mini-YGDAI format
  • Connects to most current Yamaha digital consoles
  • Support sample rates from 44.1kHz to 48kHz, +/-10%
  • Assign audio outputs to A-Net directly from Yamaha interface
  • One A-Netâ„¢ Pro16 output, EtherCon RJ45 connector
  • Connects directly to Pro16 Personal Mixers and Digital Snakes
  • Channel Link DIP switches for stereo operation
  • Mode select switch for 16-channel or 8-channel operation (required for PM1D)
  • No analog input module required
  • Works with any number of Personal Mixers (A-16II or A-16R)
  • Connect the AN-16/o Output Module for an unlimited number of 16-channelaudio splits

Specifications

  • A-Net Output: 1 Category 5 (RJ45 connector)
  • Card Interface Format: Yamaha mini-YGDAI
  • Sample Rate: 44.1kHz to 48kHz (+/-10%)
  • Dimensions (W x D x H): 4.75" x 6.25" x 1.5"
  • Weight: 0.8 lbs
