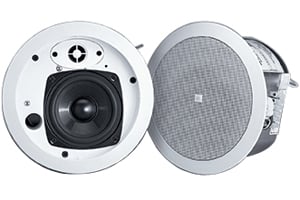

JBL CONTROL 24CT MICRO PLUS 4" Ceiling Speaker for Background Music Plus Paging, 70V

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low distortion, a smooth, natural frequency response, and a 25W transformer make the Control 24CT MicroPlus ideal for medium volume business music. Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers allows mixing and matching of models within zones without requiring separate equalization. Installation of the Control 24CT MicroPlus is quick and easy. The loudspeaker is packaged with the backcan, grille, support backing bracket and tile rails. In addition, optional new construction brackets are available. The entire installation can be accomplished without requiring access above the ceiling.

The Control 24CT MicroPlus backcan is made of formed steel and the speaker is suitable for use in air handling spaces per UL2043. An attachment loop is provided on the backcan for cabling. A seismic tab is provided as a secondary support. The Control 24CT MicroPlus trim and baffle are paintable to match any decor.

Features

• Extremely wide 150º coverage.
• Smooth frequency response.
• Advanced crossover network provides very even coverage throughout listening area.
• Includes 25W multi-tap transformer for 70V/100V systems.
• Shallow 100 mm (4") depth.
• Packaged with grille, backcan and tile rails for fast installation.

Specifications

• Frequency Range (-10 dB): 80 Hz - 25 kHz
• Nominal Sensitivity: 85 dB SPL @ 1 m (3.3 ft)
• Crossover: 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate
• Rated Maximum SPL: 99 dB @ 1 m (3.3 ft), 25W tap
• Transformer Taps: 70V: 25W, 12W, 6W taps; 100V: 25W, 12W taps
