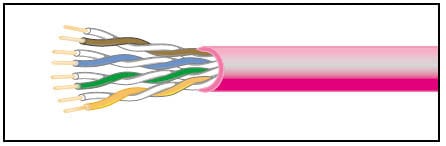

West Penn 4245 1000 1000' 24AWG Multi-Conductor CAT5e Cable

Applications

• High performance horizontal wiring that meets or exceeds industry standards for:
  • Analog and Digital voice systems
  • Intercom systems
  • Security (CCTV) systems
  • 10 Base-T, 100 Base-T, and 1000 Base-T
  • FDDI TP-PMD
  • 16Mbps Token Ring
  • Home Networking
  • ATM 155Mbps
  • 550 Mhz Broadband video and standards under development such as: 622Mbps ATM

Features

• Multiple pair Category 5E cable
• Enhanced UTP Category Cable
• 4 pair 24AWG unshielded
• Thermoplastic insulation
• Each pair twisted in varied lays
• Thermoplastic jacket

Specifications

• Rating:
  • UL listed NEC type CMR or MPR as defined in NEC Article 800
  • Constructed in accordance with UL Standard 444
  • Complies with UL 1666 Vertical Tray Flame Test
  • Meets and Exceeds TIA/EIA 568-B.2 Specifications
  • Verified to Category 5E requirements by independent third party testing laboratory
